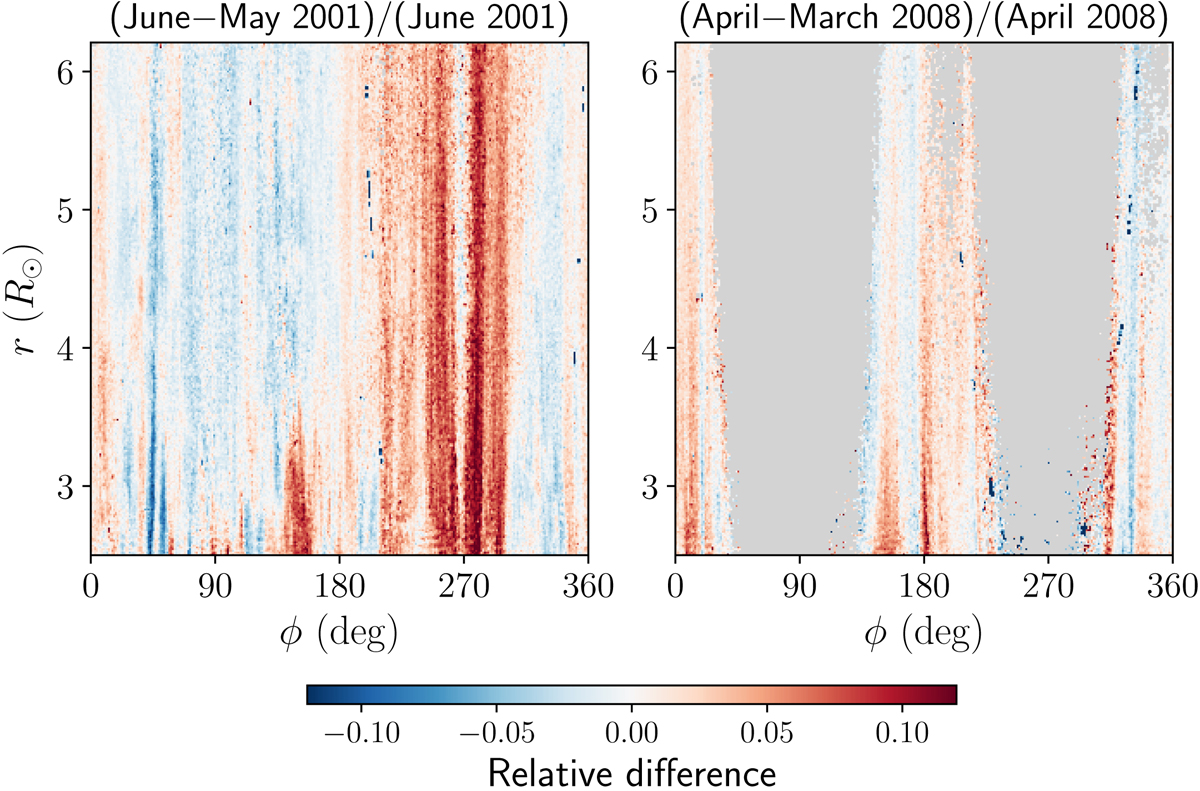

Fig. 12.
Download original image
Relative difference between Fcorr maps calculated for two consecutive months. The horizontal axis corresponds to the polar angle ϕ in degrees, and the vertical axis is the heliocentric distance r in the R⊙ units. Blank pixels colored in gray appear in the regions where the correlation method is not applicable (see text for details).
