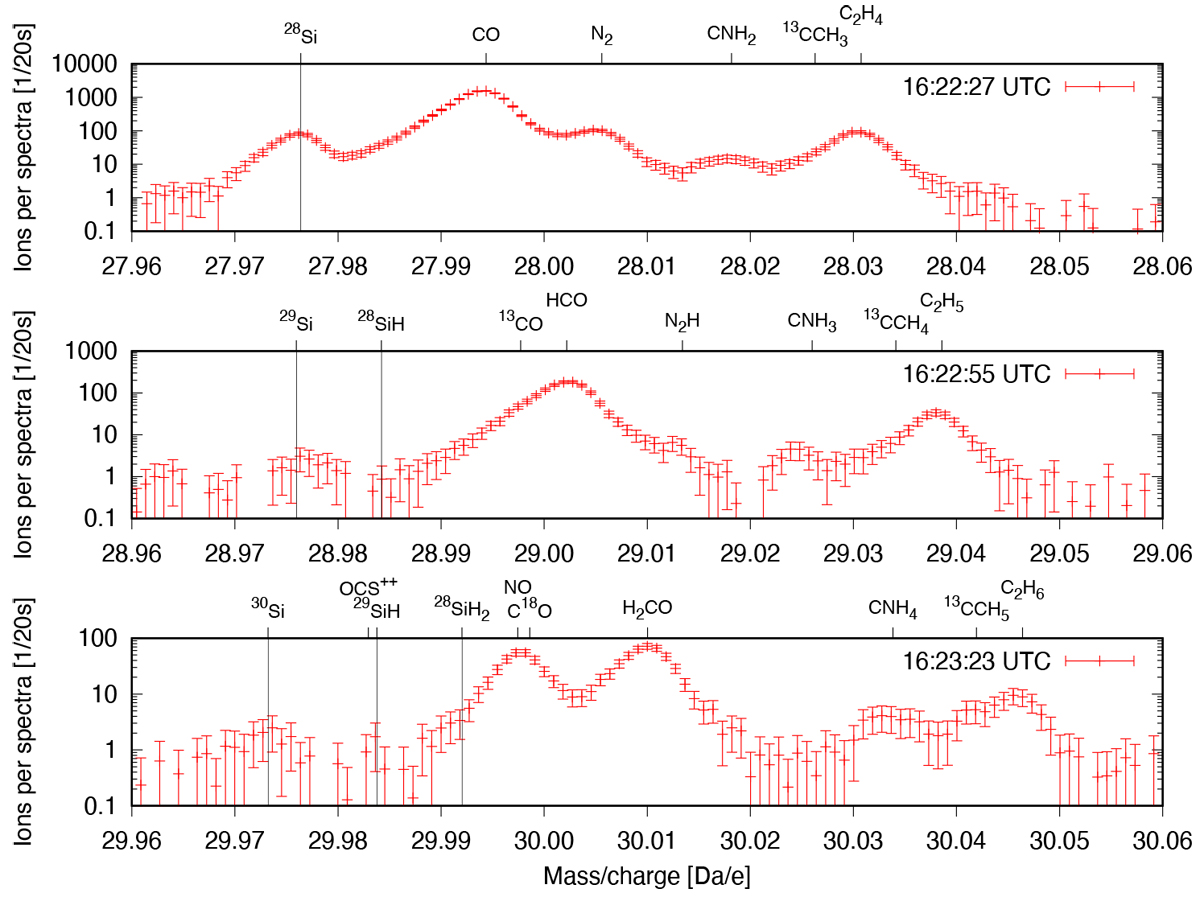

Fig. 1

Download original image
ROSINA DFMS m∕Q = 28 to 30 Da/e spectra in log scale top to bottom, measured during the slew on 31 July 2015, 16:22:27 (ESA Planetary Science Archive (PSA) filename and DFMS detector row: MC_20150731_162059567_M0222.TAB, row B), 16:22:55 (MC_20150731_162127567_M0222.TAB, row B), and 16:23:23 UTC (MC_20150731_162155567_M0222.TAB, row B) at off-nadir angles decreasing from 150 to 148 degrees (see Fig. 2). Indicated on the x-axis on top is the m∕Q of a suite of species. Vertical lines mark the exact masses of species of interest (parents and fragments), i.e., 28Si with the minor isotopes 29Si and 30Si as well as where 28SiH, 29SiH, and 28SiH2 would be expected. We note that except for 28Si, the top labels do not include the mass number of the major isotope of an element, e.g., 12C, 14N, 16O, etc.
