Fig. A.1.
Download original image

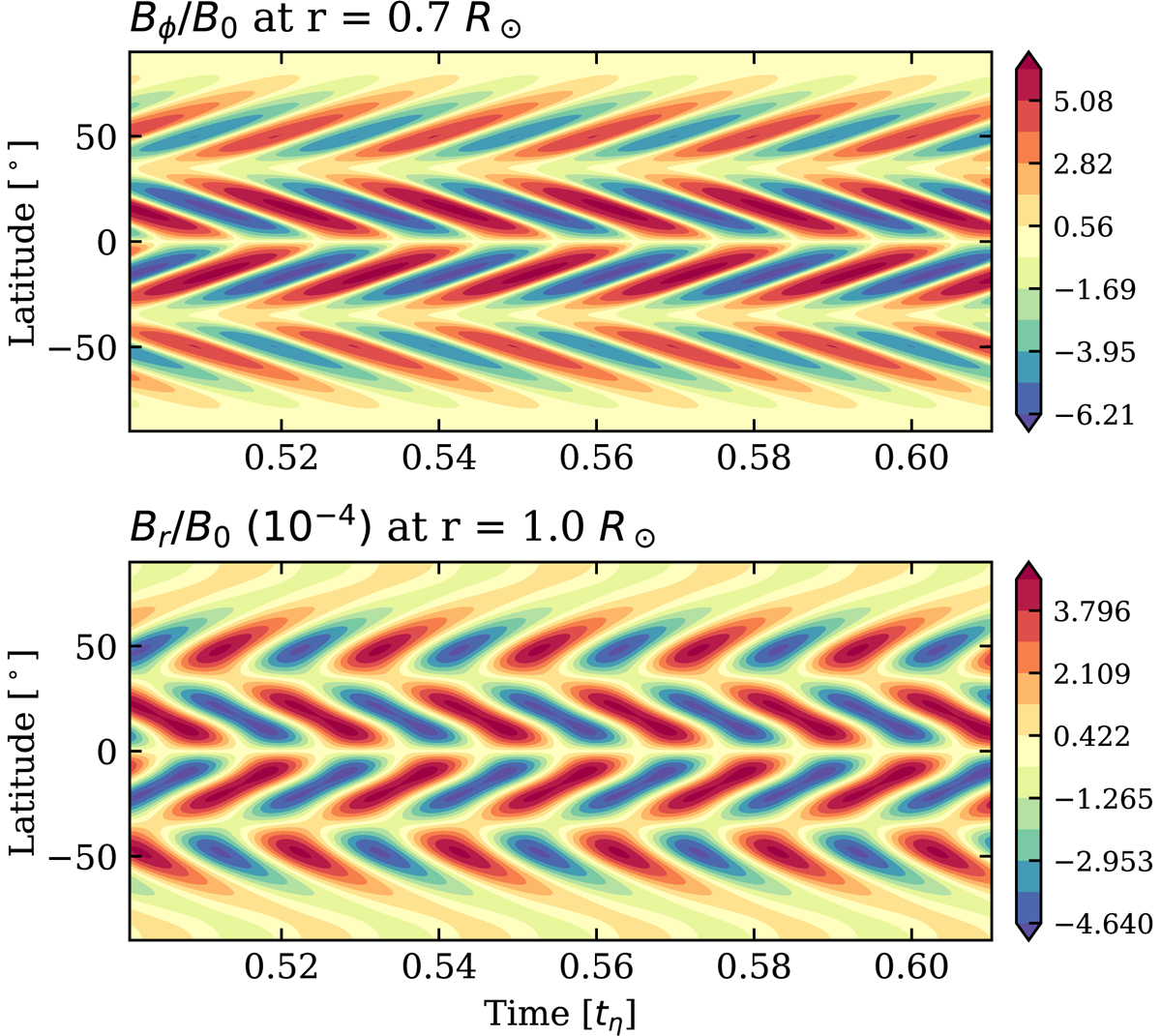

Butterfly diagram of the reference αΩ model in solar DR regime of Figure 4, fine-tuned in order to get our Sun magnetic cycle period with CΩ = 9.3 × 104. We recall that for this specific case, 22 years correspond to 0.021 tη.
