Fig. 7
Download original image

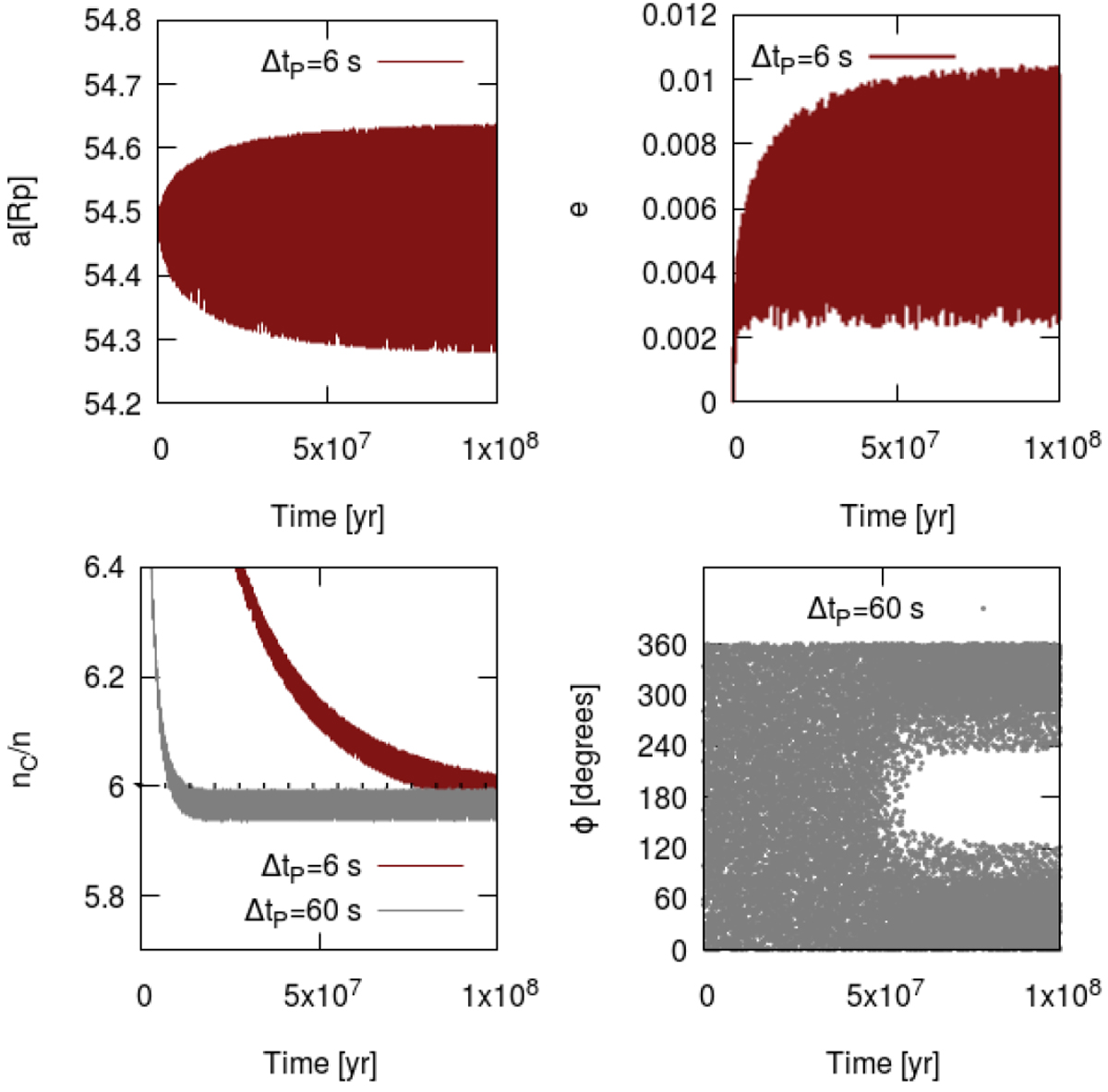

Examples of initial conditions for Hydra. Top row: orbital variation in the semi-major axis (left) and eccentricity (right) of Hydra according to the adopted criteria. The initial conditions are aC ∕RP= 4, eC = 0.001, ΩC ∕nC = 2, A = 10, and ΔtP = 6 s. Bottom row:time variation in the mean-motion ratio (left) and ϕ6∕1 = 6λ − λC − ϖC − 4ϖ (right) for two values of ΔtP, namely, 6 s and 60 s. We note that, for ΔtP = 60 s, ϕ6∕1 librates witha large amplitude around 0°. For ΔtP = 6 s, all critical angles associated with the 6/1 MMR circulate.
