Fig. 10

Download original image

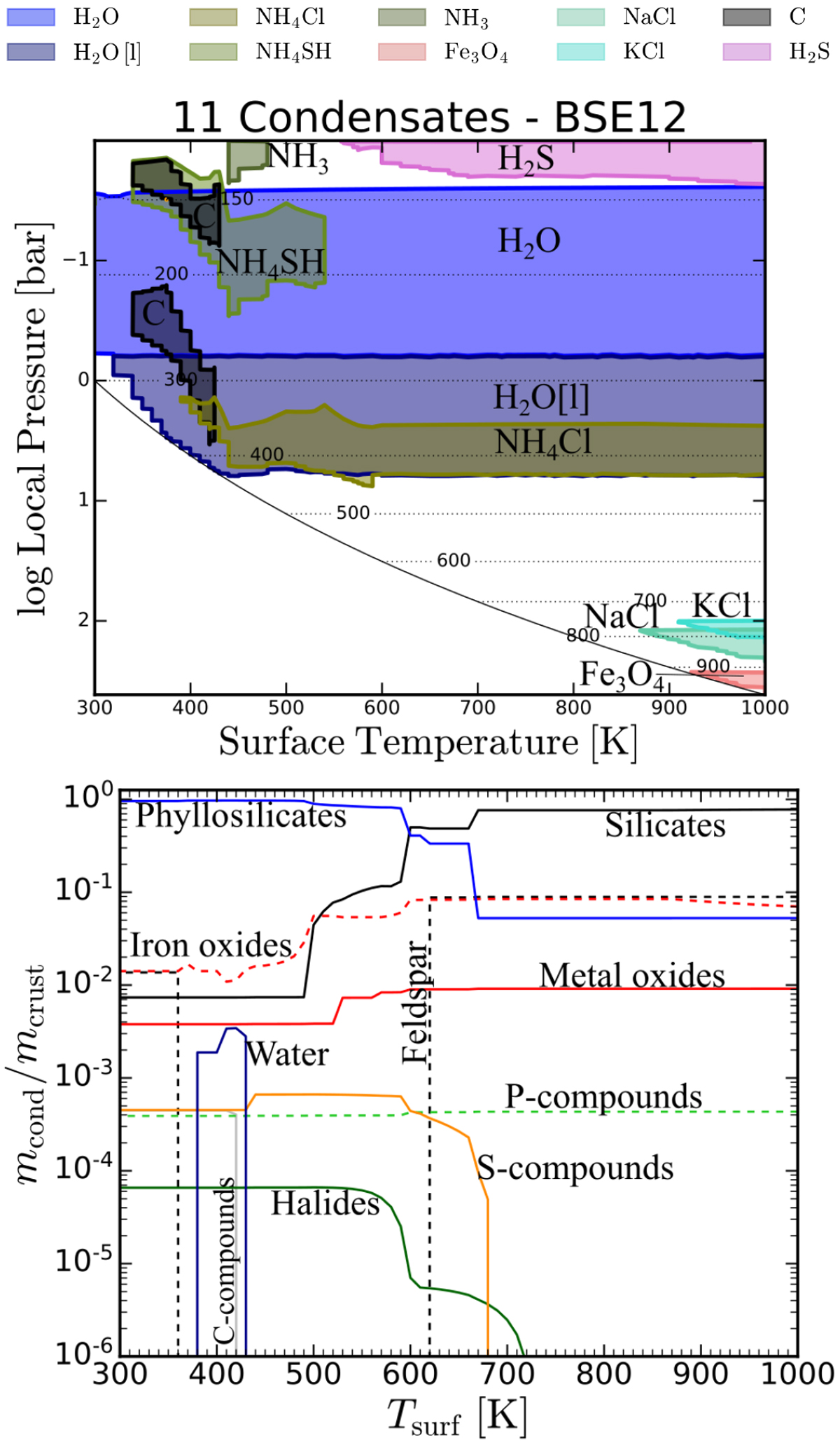

Upper panel: thermally stable cloud condensates with ncond∕ntot > 10−10 for overlapping atmospheric (pgas, Tgas) profiles with varying surface conditions (psurf, Tsurf). All atmospheric profiles go through (pgas = 1 bar, Tgas = 300 K) and have a BSE12 like crust composition. (psurf and Tsurf) for each model are indicated by the solid black line. The polytropic index is kept at γ = 1.25 for all models. Lower panel: crust composition for the atmospheric models in the upper panel. The condensates belonging to each group are listed in Table 5.
