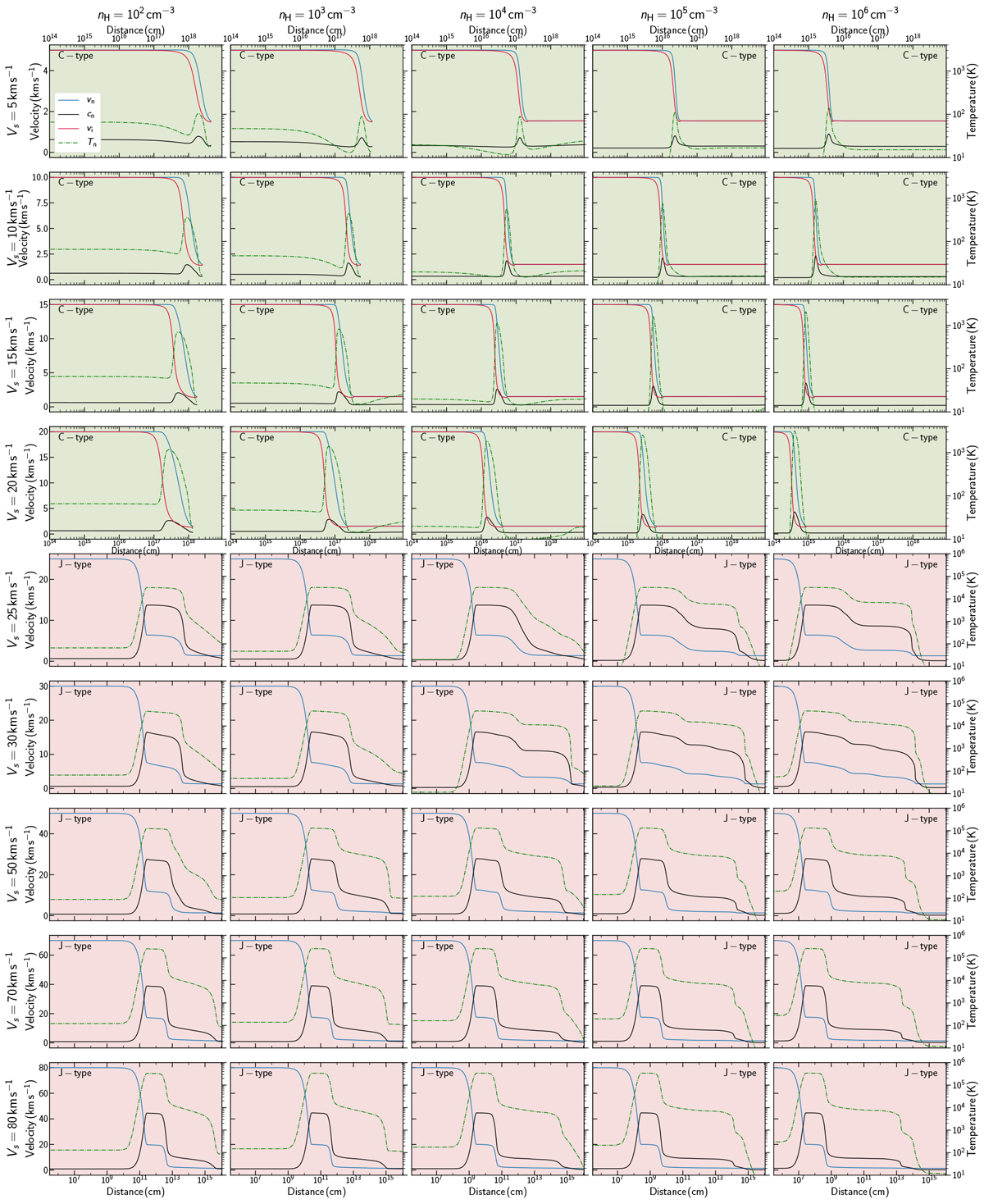

Shock profiles of ion (red solid) and neutral (blue solid) fluid velocities, local sound speed (black solid), and neutral fluid temperature (green dash-dotted). The shocks propagate from right to left, and the velocities are given in the reference frame in which the shock is stationary. These shocks were computed with magnetic parameter b = 1 and no external radiation field, G₀ = 0. It should be noted that both the distance and temperature axes are different for the C- and J-type shocks, and that the logarithmic scaling can give the false impression that both types of shocks have similar sizes for a given pre-shock density. We have excluded profiles for shocks with velocities V_s = 40 and 60 km s⁻¹ for brevity.
