Fig. 2.

Download original image

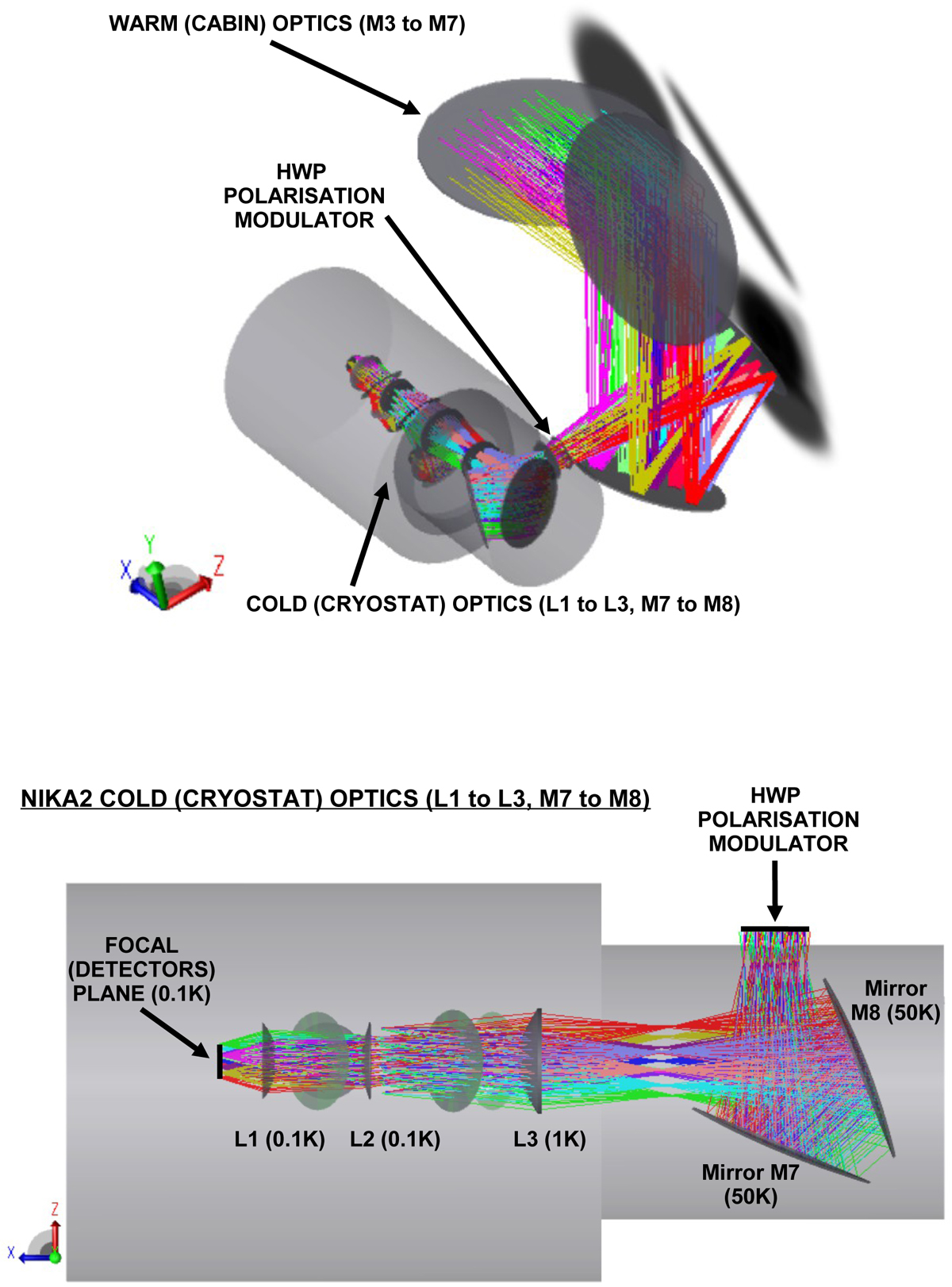

NIKA2 instrument optical layout ray-tracing. The location of the HWP modulator is shown. Top panel: 3D-view including the room-temperature mirrors (M3–M6) and the cold optics lenses (L1–L3) and mirrors (M7, M8). Bottom panel: cross-section of the cryostat.
