Fig. 18.

Download original image

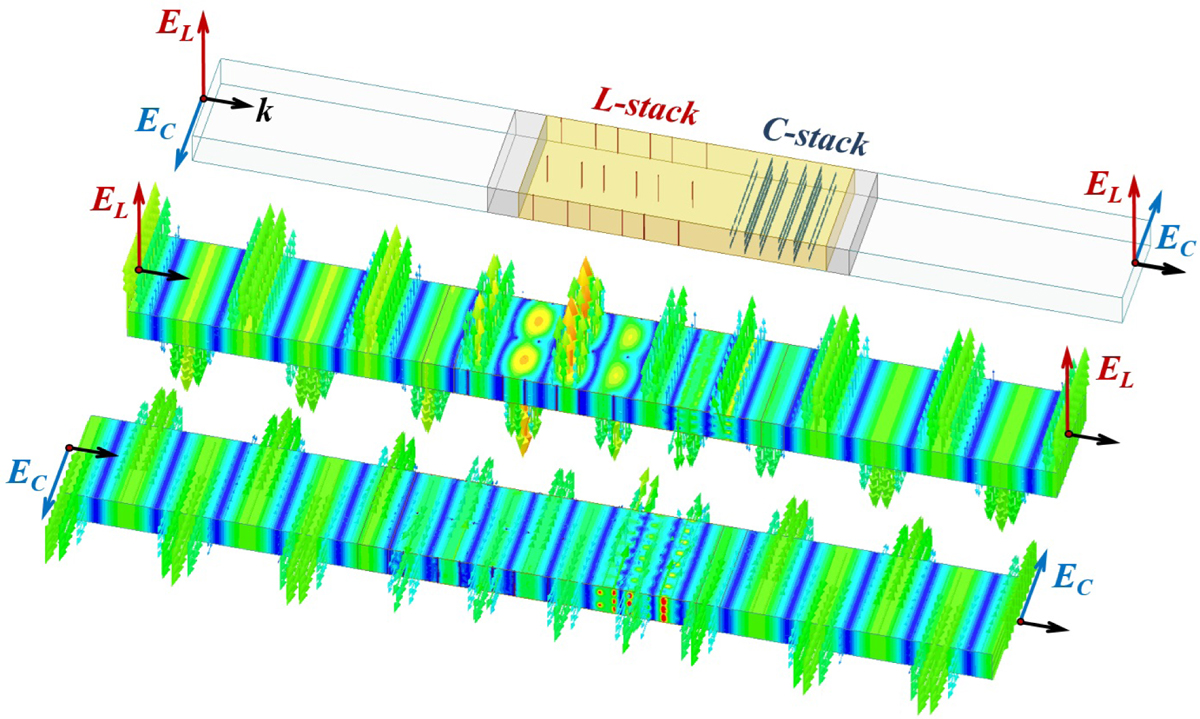

M-HWPC finite-element unit cell model and simulations, run at 230 GHz, showing the propagation of the orthogonal electric fields, aligned with the L and C grids. We note that, at those specific positions, the outgoing vectors are in-phase (EL) and out-of-phase (EC) with respect to the incoming ones, so showing the expected introduction of ∼180° phase-shift between the two polarisation components.
