Fig. C.1
Download original image

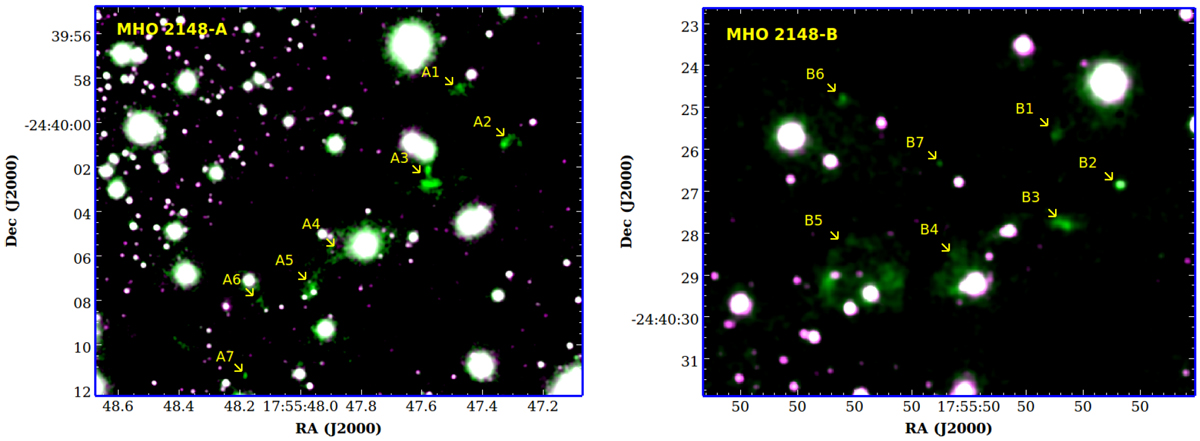

Composite image of the northwest (knots A, left panel) and southeast (knots B, right panel) lobes of MHO 2148. The K-band filter is shown in magenta and the H2-band filter in green. The H2 emission structures are marked with yellow arrows. To enhance the faint knots a smoothing 6 px (~0.12′′) has been applied to the K and H2 filters. In addition, for the H2 filter image a logarithmic scale was used.
