Fig. 16.

Download original image

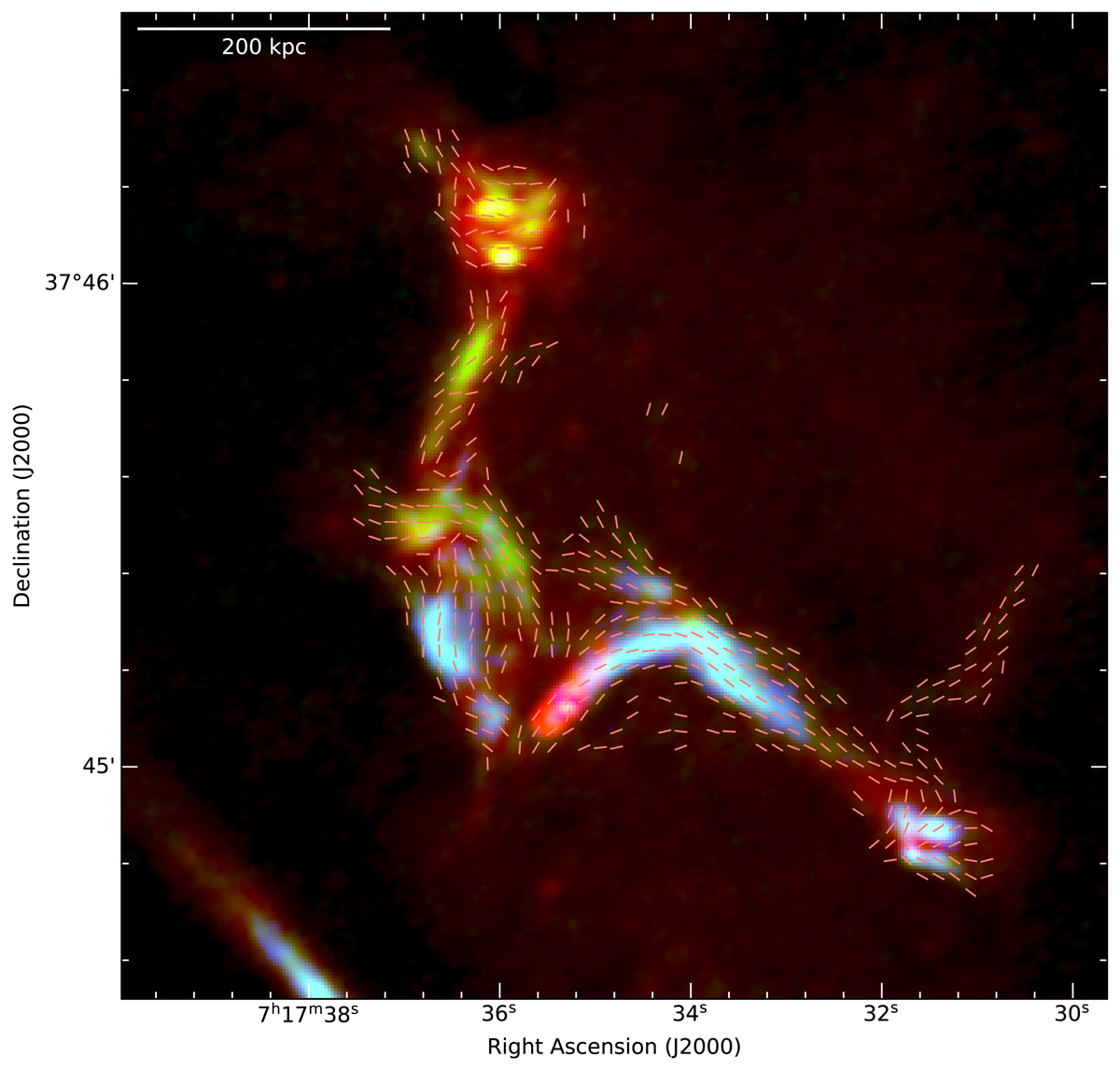

Faraday-corrected magnetic field (B-field) orientation (pink lines) of the relic overlaid on the 2″ resolution total intensity (red), S-band polarization (green), and L-band polarization (blue) images. The image demonstrates well aligned B-field vectors with the orientation of emission. This suggests a high degree of ordering of the B-field across the entire relic. The image properties are given in Table 1, IM5 and IM9.
