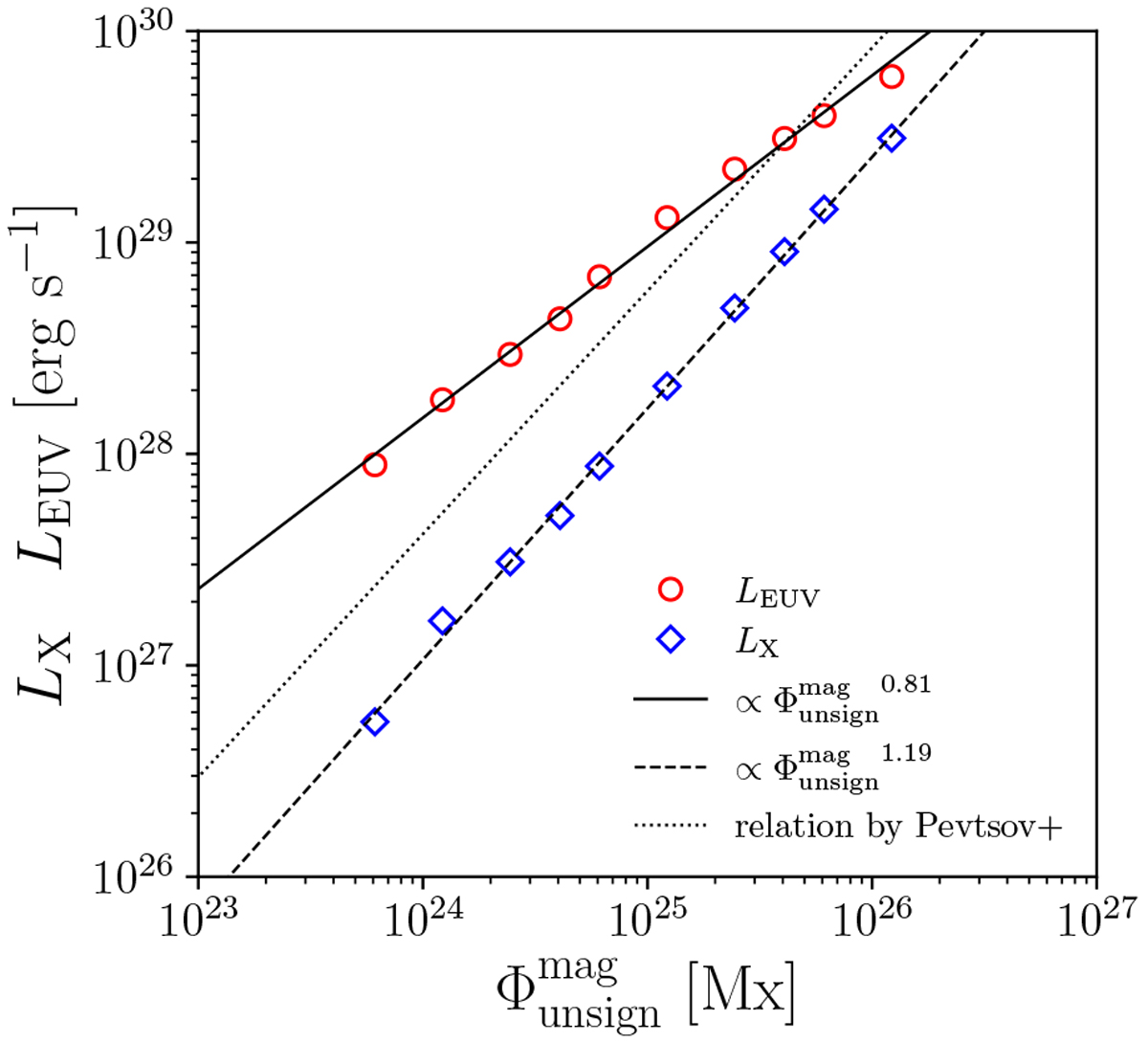

Fig. 12
Download original image
Unsigned magnetic flux
versus X-rayluminosity LX (blue diamonds) and EUV luminosity LEUV (red circles). Results for the fixed half loop length lloop = 20 Mm are shown. Solid and dashed lines are the power-law fittings to the simulation results. Also shown, by the dotted line, is the observational relation by Pevtsov et al. (2003).
