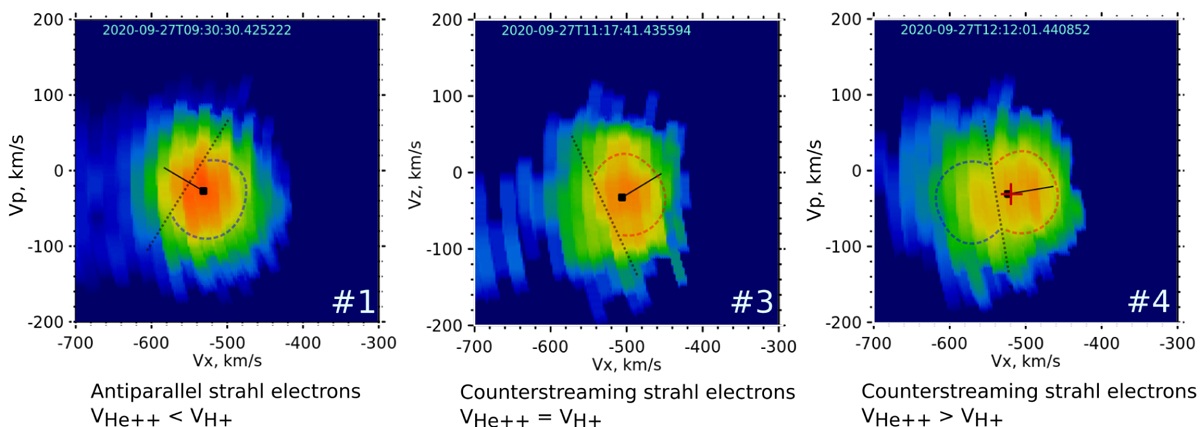

Fig. 7.


Download original image

Three examples of proton distribution functions in the plane containing V and B vectors. Left: Interval #1, middle: Interval #3, right: Interval #4. The straight dashed lines show the position of the de Hoffmann-Teller frame origin, and the dashed contours show the parts of the proton VDFs passing the reconnection kink.
