Fig. B.1
Download original image

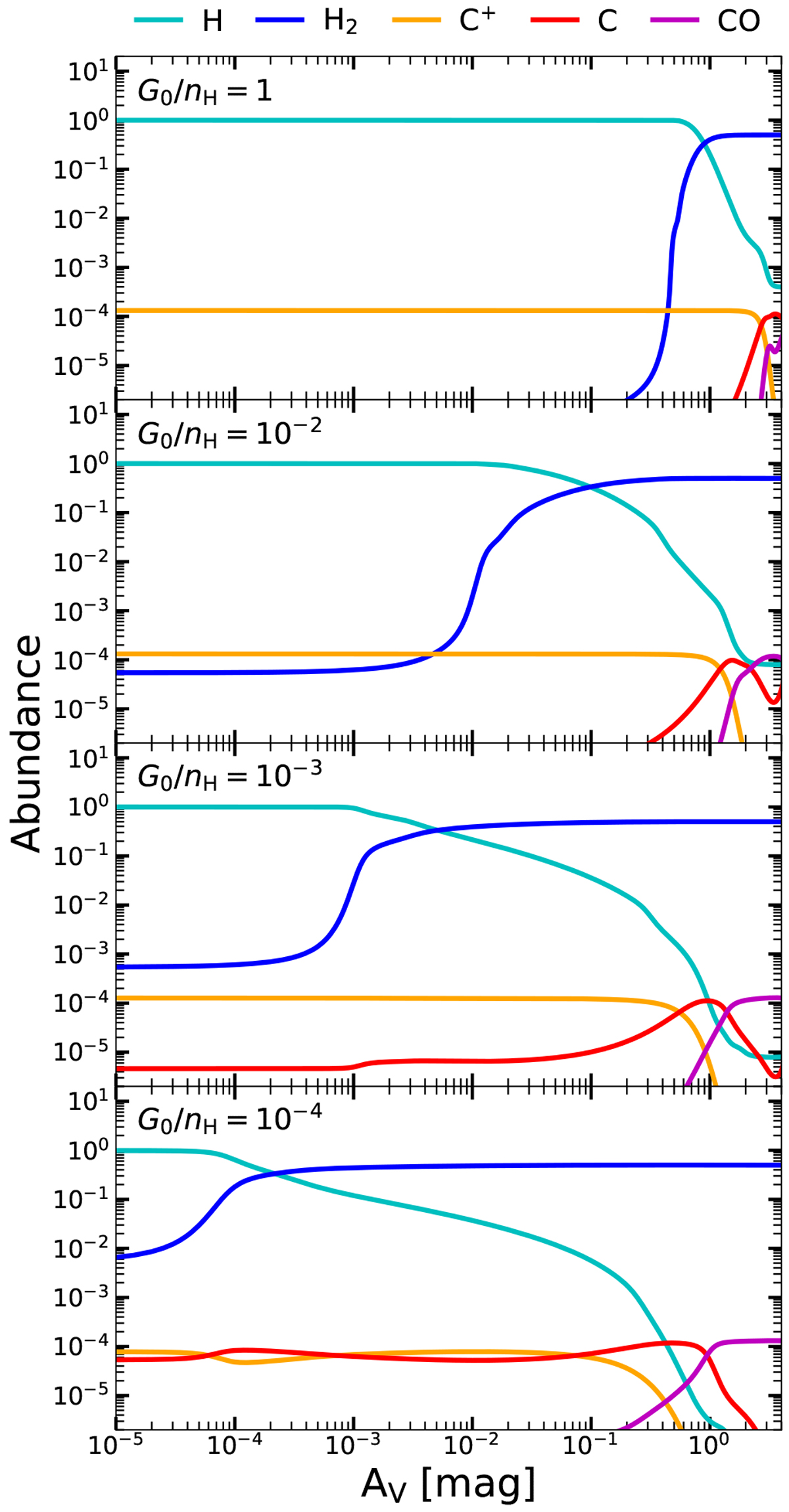

Abundance profiles of H in cyan, H2 in blue, C+ in orange, C in red, and CO in violet as functions of AV for models with G0∕nH = 1, 10−2, 10−3, and 10−4 cm3 obtained using Meudon PDR Code.
