Fig. F.2


Download original image

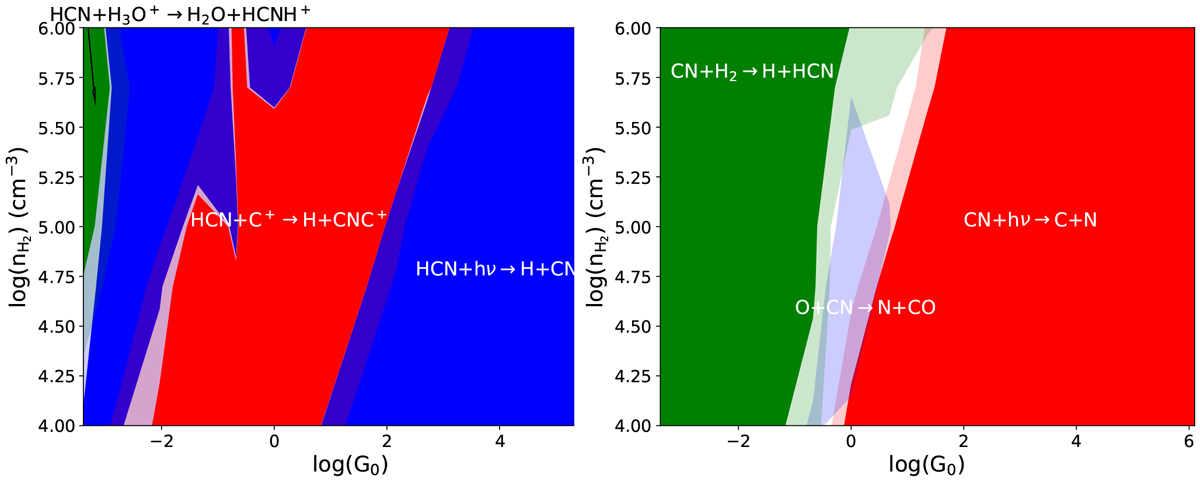

Dominant reactions of HCN (left) and CN (right) destruction assuming T  =   300 K. Reactionscontributed at least 50% of total flux are marked with full colors. Transparent colors correspond to 30%-50% contribution. HCN + hν → H + CN reaction is shown in blue, HCN + C+ → H + CNC+ in red, and HCN + H3O+ → H2O + HCNH+ in green. CN + hν → C + N reaction is marked with red color, O + CN → N + CO with blue color and CN + H2 → H + HCN with green color.
