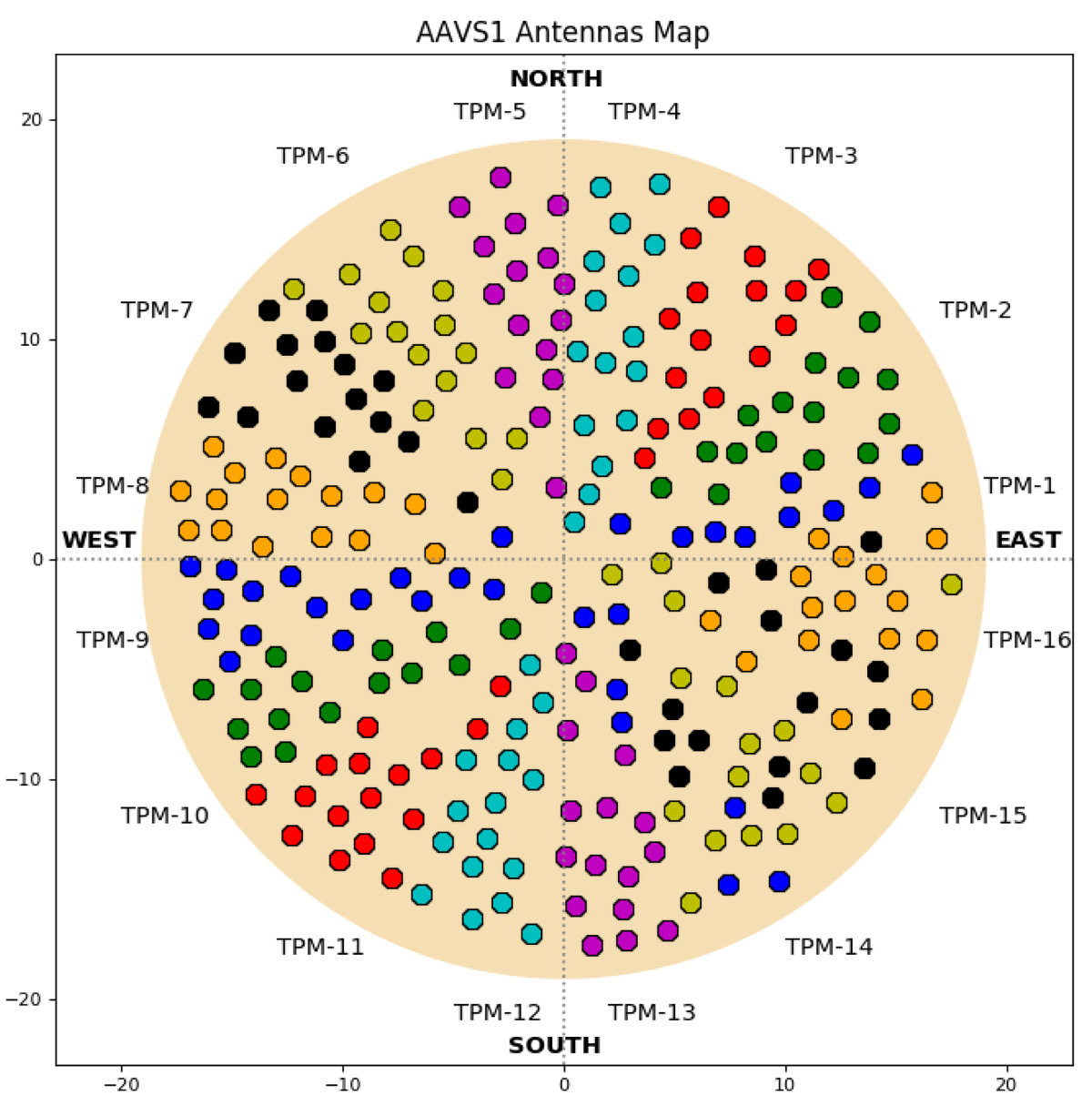

AAVS1 layout. Distances are in metres. Antennas are colour-coded by the TPM they are connected to in sets of 16, with each set roughly forming a wedge in the station. The APIU (not shown) resides in the centre of the station.
