Fig. 1.
Download original image

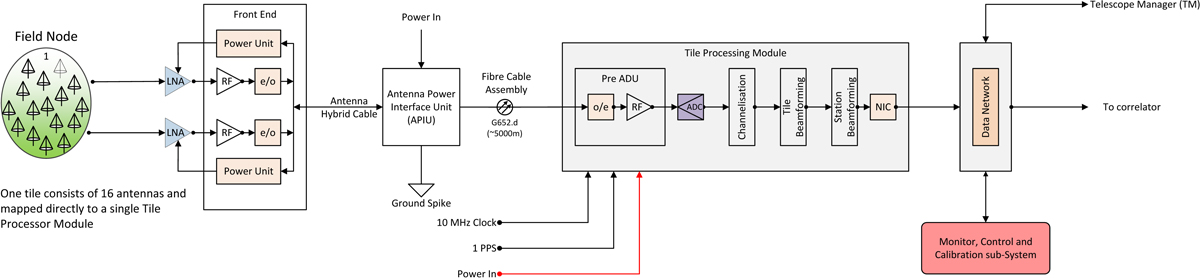

AAVS1 system signal chain block diagram. The fibre cable assembly in the centre of the image represents the 5.2 km of optical fibre connecting the in-field components to the MRO central control building. The components to the left of the fibre cable assembly are in the field, components to the right are in the control building.
