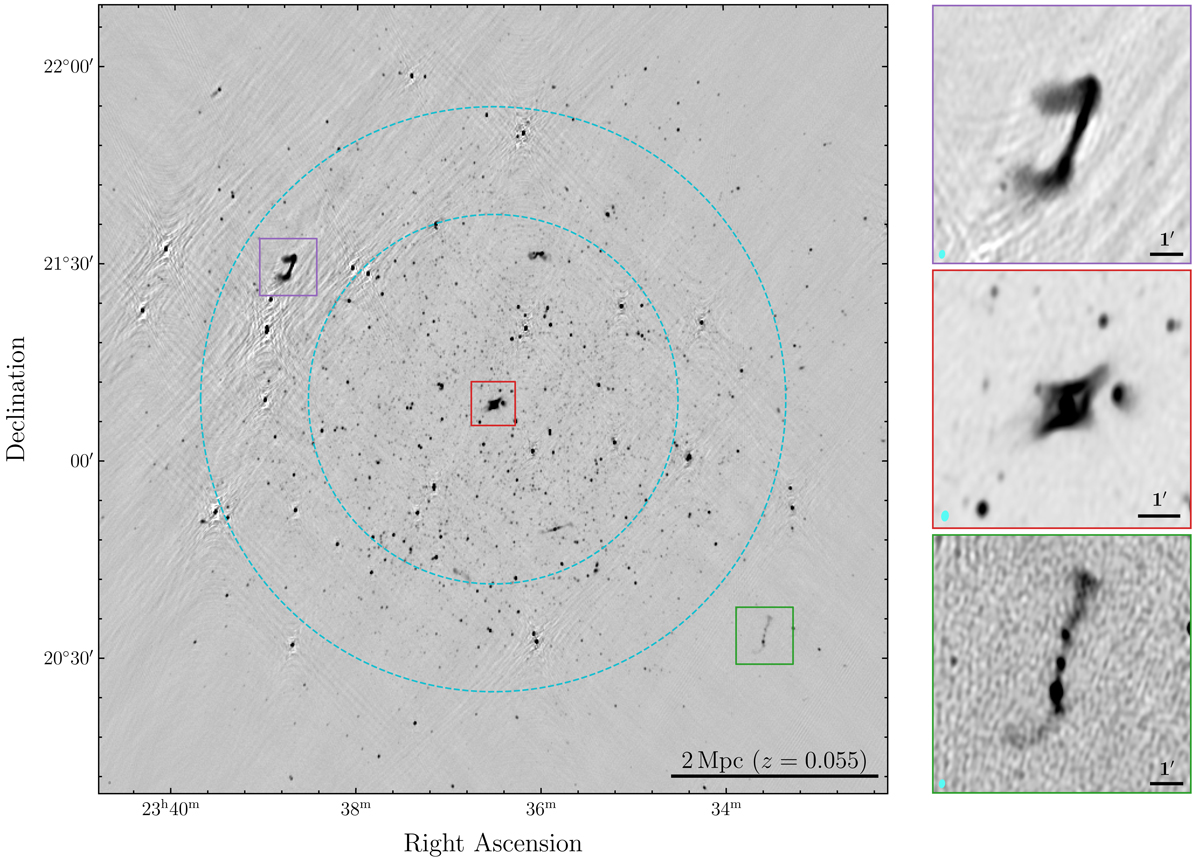

Fig. 1.

Download original image
2 × 2 deg2L-band multi frequency synthesis continuum image centred on Abell 2626. This image covers a frequency range of 960–1160 MHz and 1300–1520 MHz, and was imaged with a robust weighting of −1. The image has not been primary beam corrected, however the FWHM of the primary beam at 1520 MHz (the high frequency limit of the image) is given by the inner dashed cyan circle and the outer dashed cyan circle represents the primary beam at 960 MHz (the low frequency limit of the image). The black bar in the bottom right corner indicates 2 Mpc at the distance of A2626 (z = 0.055). The synthesised beam () is shown by the small grey ellipse in the bottom left corner. The three stacked panels on the right are zoomed in on two radio galaxies and the central “kite” source. The small filled cyan ellipse in the lower left corner indicates the synthesised beam.
