Fig. 8.

Download original image

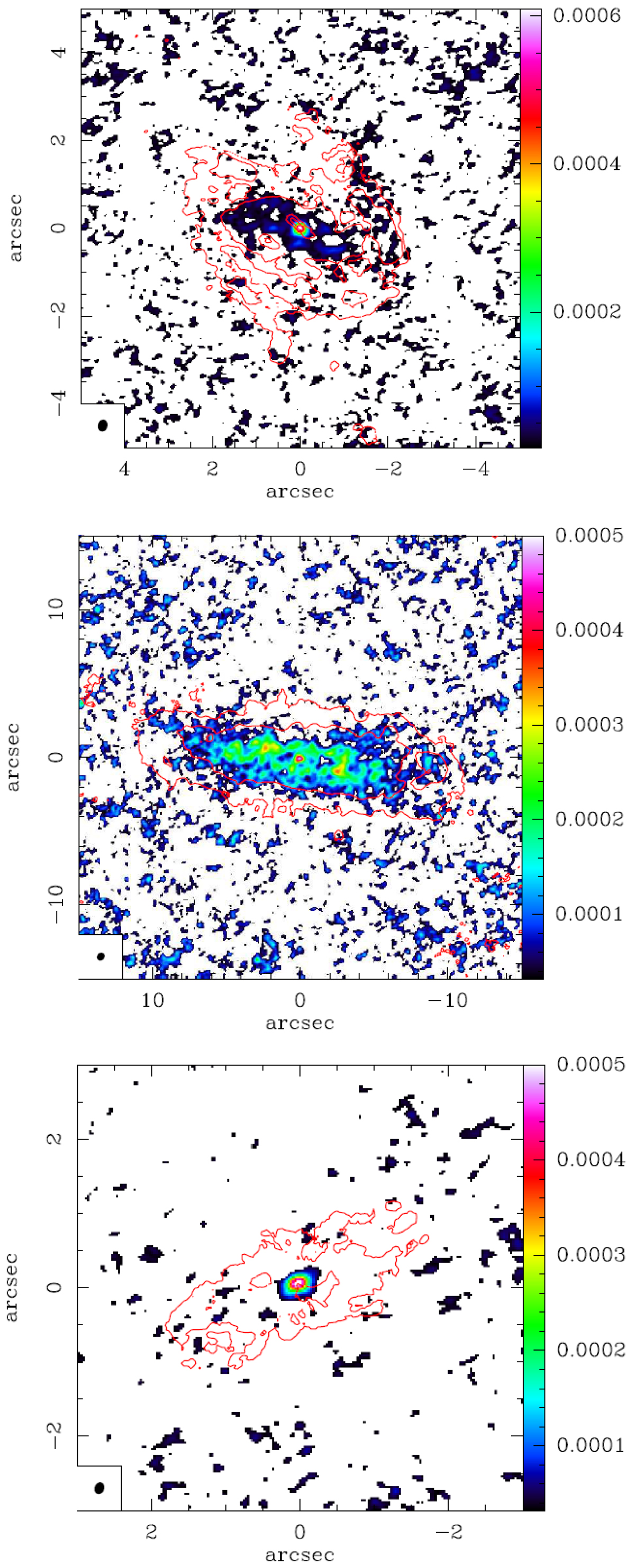

Overlay of CO(2−1) contours on the 1.2 mm continuum image of NGC 4968 with 2 CO contours of 4 and 16% of maximum (top panel), NGC 4845 with 2 CO contours of 5 and 20% of maximum (middle panel), and MCG-06-30-15 with 2 CO contours of 5 and 20% of maximum (bottom panel). The continuum scale (colour wedge) is in Jy beam−1. The 3σ level is 0.1 mJy, therefore, 0.0001 Jy beam−1 in the units of the figure for N4968; 0.5 mJy beam−1, then 0.0005 Jy beam−1 for N4845; and 0.05 Jy beam−1, therefore, 0.00005 for MCG-06-30-15.
