Fig. 6

Download original image

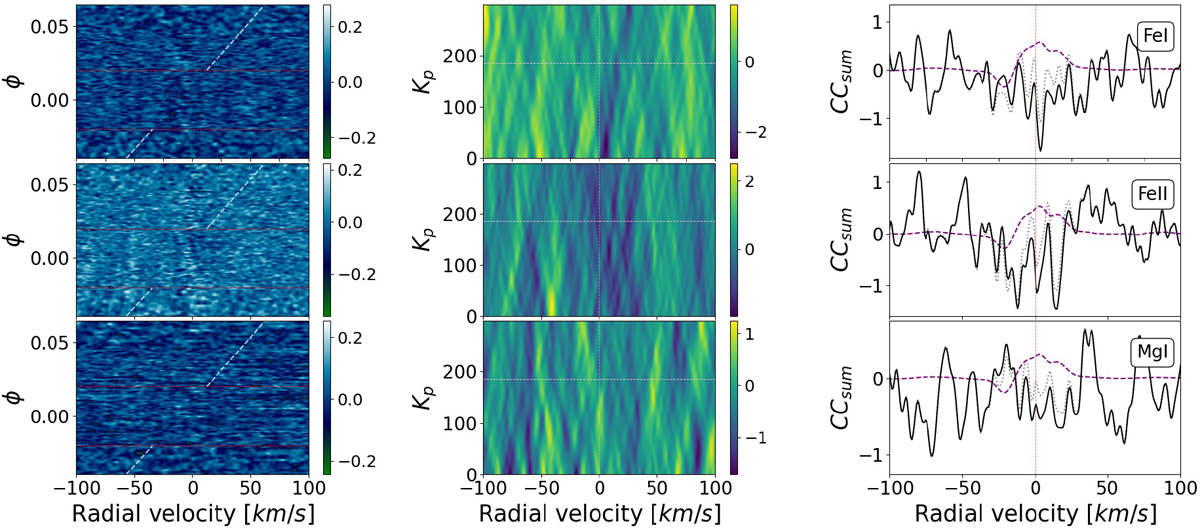

Left panels: cross-correlation residual maps for HARPS-N data after removing RM+CLV effects for Fe I (top), Fe II (middle), and MgI (bottom). Middle panels: Kp maps after removing RM+CLV signal. Right panels: cross-correlation sum plots at the expected Kp value, before (gray dotted line) and after (black line) removing the effects. In purple we show the calculated models for RM+CLV effects.
