Fig. 7.


Download original image

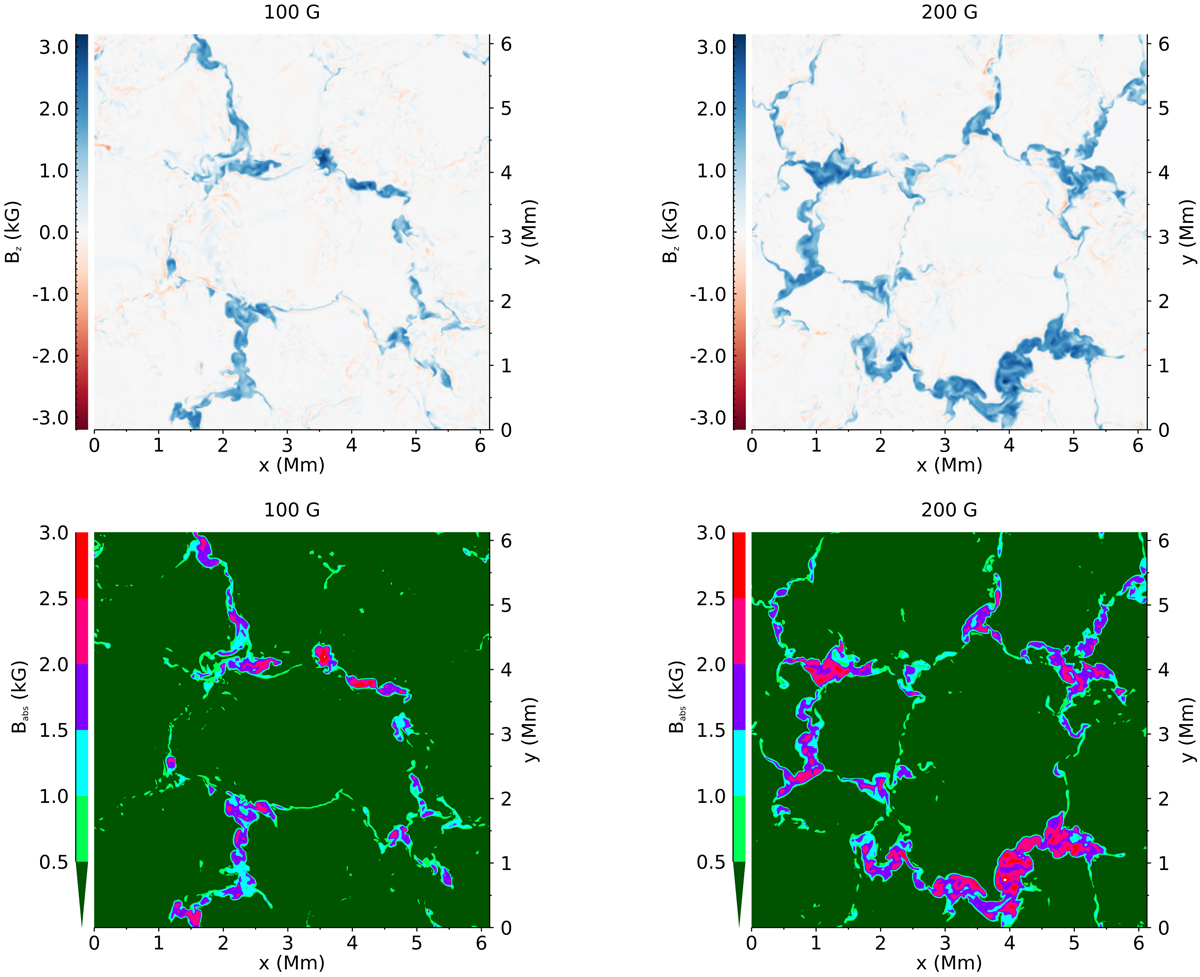

Top panel: magnetic field strengths at the height where τ = 1 for the 100 G and 200 G snapshots. Bottom panel: mask of the 100 G and 200 G snapshot to identify which pixels fall into 100 G intervals of the absolute magnetic field strength over the range for each snapshot.
