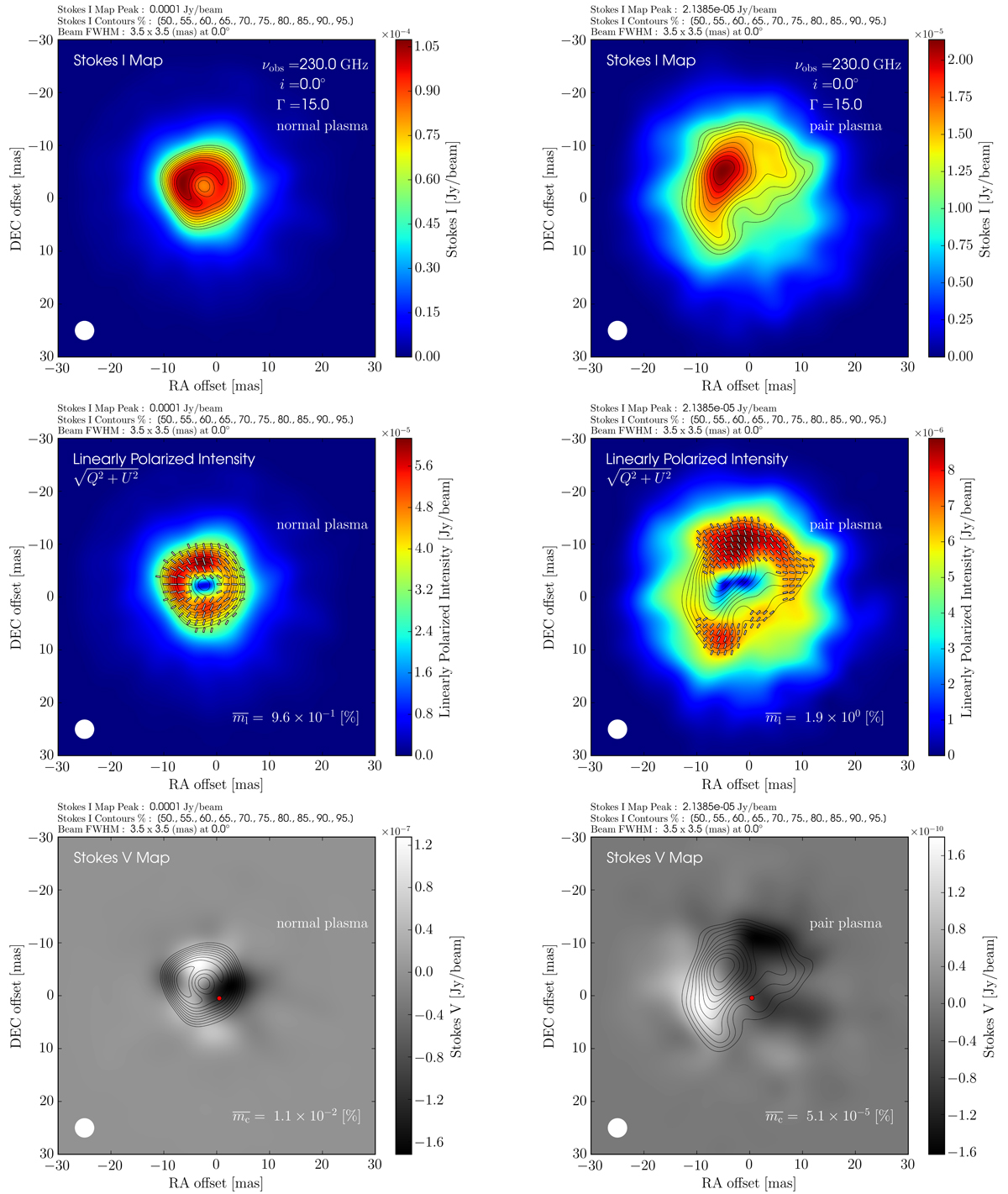

Upper left panel: fast-light Stokes I image (at an observing frequency of ν_obs = 230 GHz and θ_obs = 0°) of the normal plasma (e⁻ − p⁺) jet. Upper right panel: corresponding Stokes I image of the pair plasma (e⁻ − e⁺) jet. Middle left panel: rendering of the LP intensity of the normal plasma jet. White line segments indicate the electric vector position angles (EVPAs) as projected onto the plane of the sky. Middle right panel: corresponding LP intensity image of the pair plasma jet. Integrated levels of fractional linear polarization () are listed to the lower right in each panel. Lower left panel: stokes V image of the normal plasma jet. Lower right panel: stokes V image of the pair plasma jet. The red dots in the lower panels highlight individual sightlines through each simulation which are illustrated in Fig. 5. Integrated levels of fractional circular polarization () are listed to the lower right in each panel. All images have been convolved with a lower resolution circular Gaussian beam of FWHM 3.5 mas for comparison to Fig. 3.
