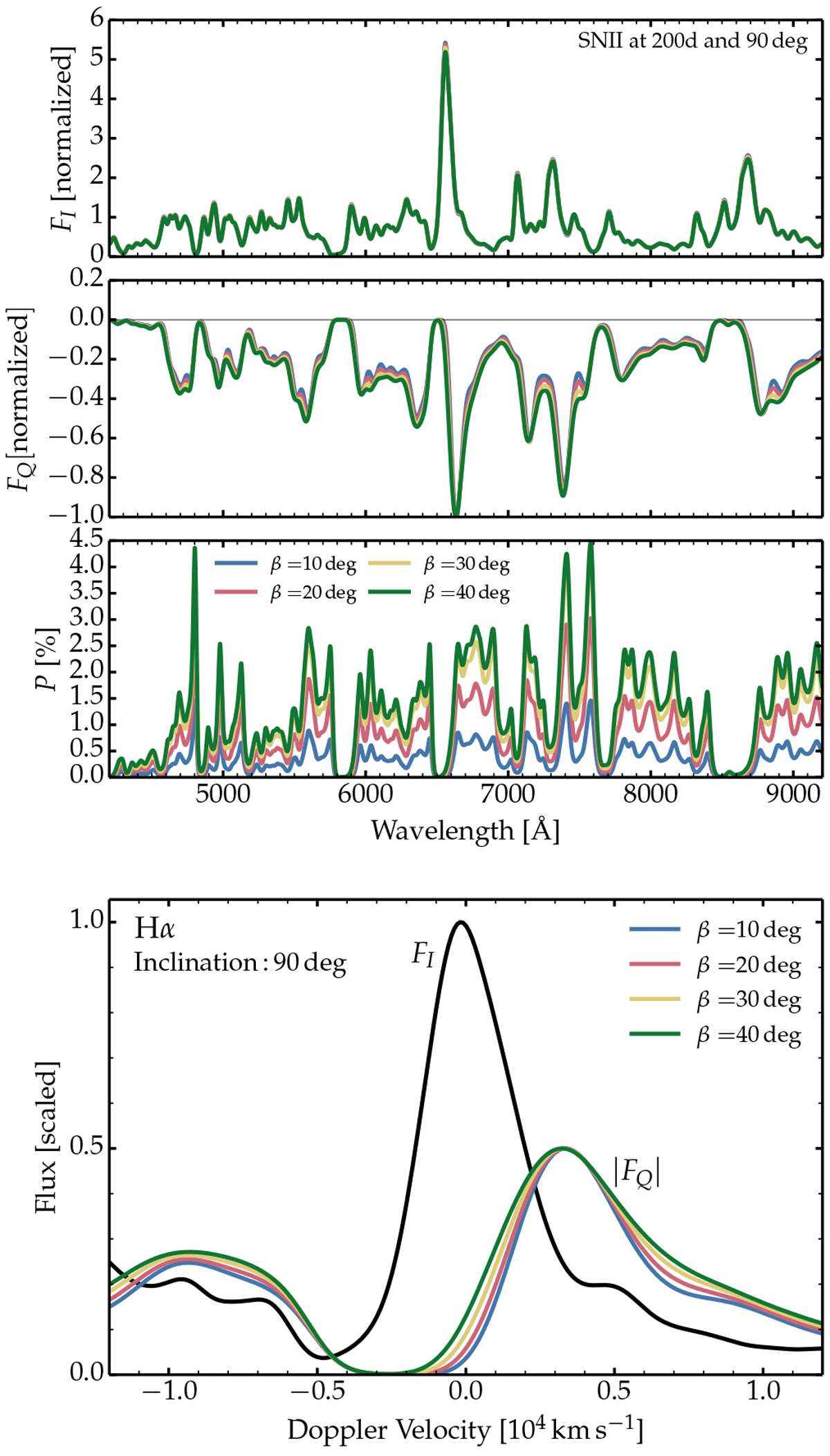

Fig. 11

Illustration of radiative-transfer results when the blob-opening angle is varied. Top: comparison of the normalized total flux FI (upper panel), the normalized polarized flux FQ (middle panel), and the polarization P (bottom panel) along a 90 deg inclination for the set of models differing in blob opening angle. The models have been smoothed with a Gaussian kernel (FWHM of 23.5 Å). In all cases, the electron-density enhancement is characterized by Vblob = 4000 km s−1, δVblob = 1000 km s−1, and Ne,fac = 20. The radial blob optical depth is 0.44. Bottom: comparison between the total flux FI (black; only one curve is shown since FI is essentially independent of the choice of opening angle – see top panel) and the scaled polarized flux |FQ | across the Hα profile for the same model set as shown at top.
