Fig. 10

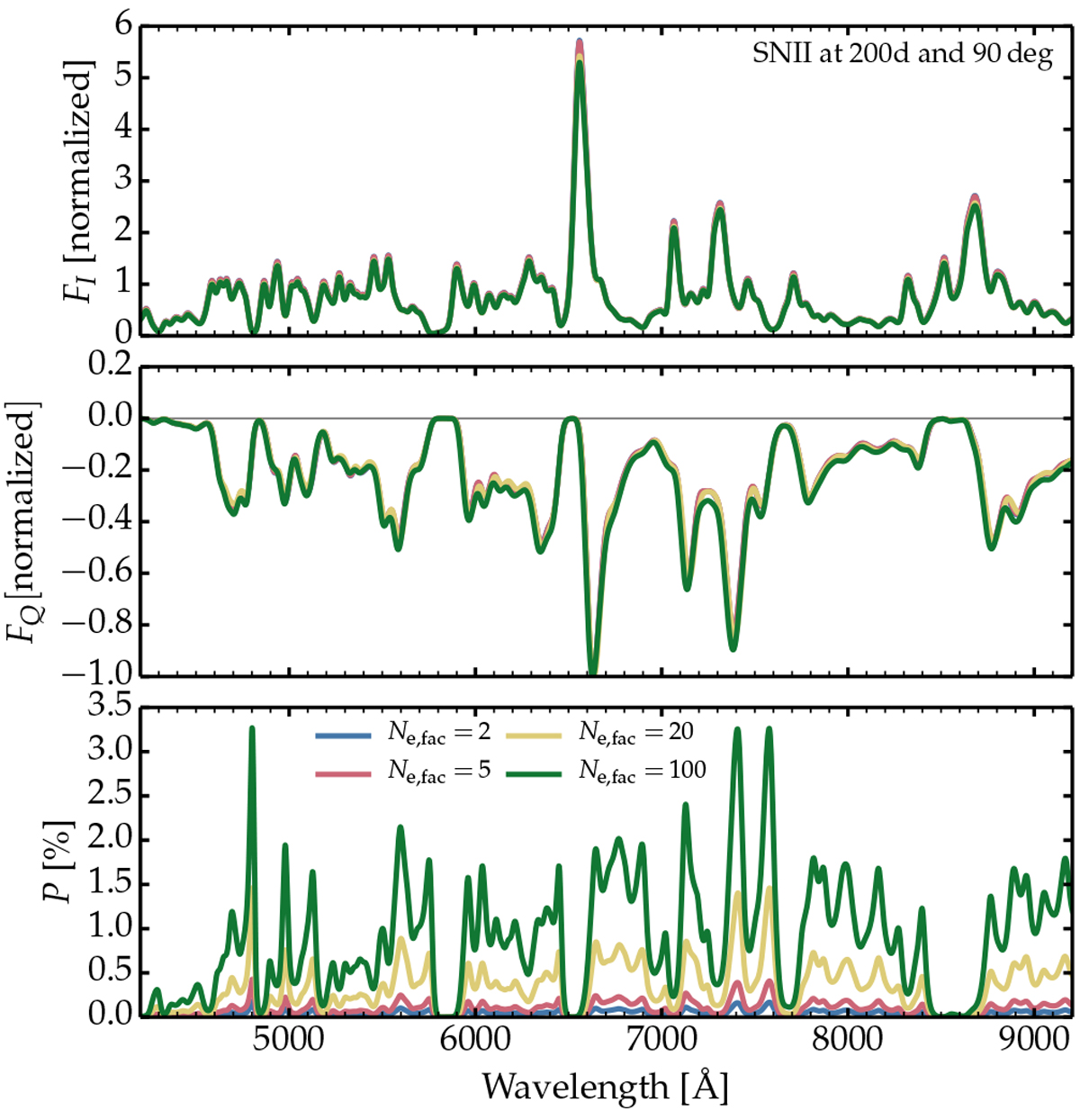

Comparison of the normalized total flux FI (top), the normalized polarized flux FQ (the normalization is done at the location where |FQ| is maximum), and the polarization P along a 90 deg inclination for the set of models differing in the value of Ne,fac, which increases from 2 to 5, 20, and 100 (the blob radial optical depth increases from 0.044, to 0.109, 0.436, and 2.178). The electron-density enhancement is otherwise characterized by Vblob = 4000 km s−1, δVblob = 1000 km s−1, and an opening angle of 20 deg. The synthetic spectra have been smoothed with a Gaussian kernel (FWHM of 23.5 Å). We note that the normalized FQ is independent of Ne,fac but that P strongly increases with Ne,fac. Varying Ne,fac impacts the level of polarization but not its qualitative behavior. We are in a linear regime whereby PcontτblobNe,fac.
