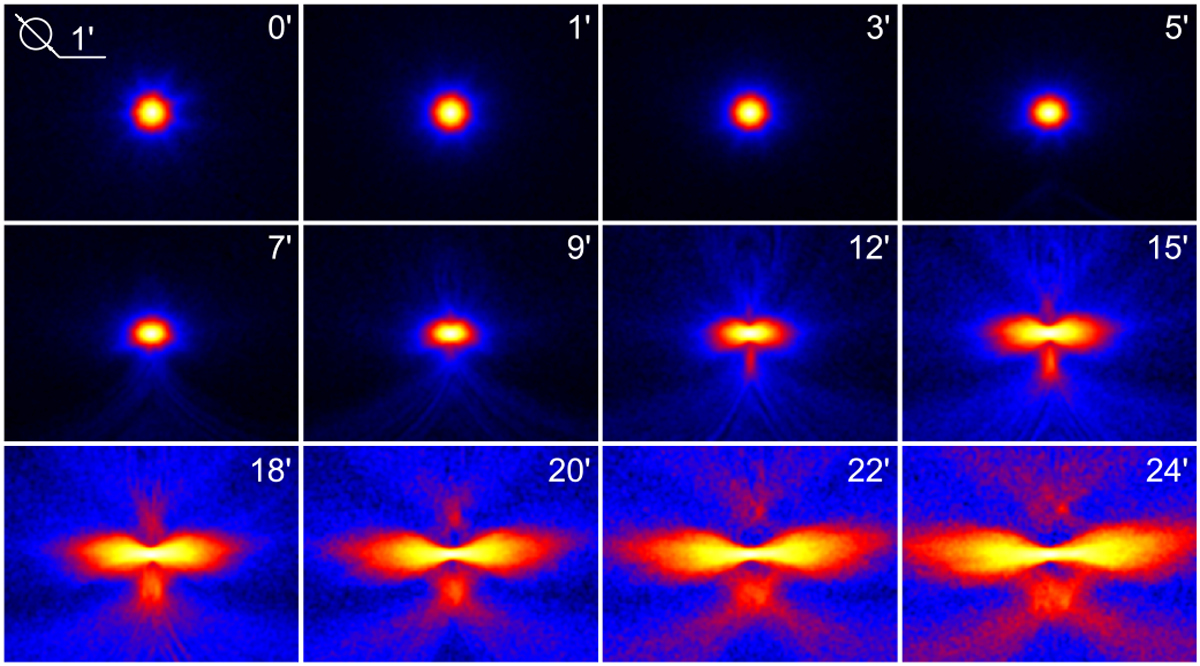

Fig. 12
Samples of the MS1 PSF for different offset angles at 8.1 keV (Krivonos et al. 2017). The PSF was obtained by averaging measurements at four azimuth angles. The size of each image is 400′′ × 560′′. The colour scale is logarithmic. The MS was defocused by 7 mm.
