Fig. 9

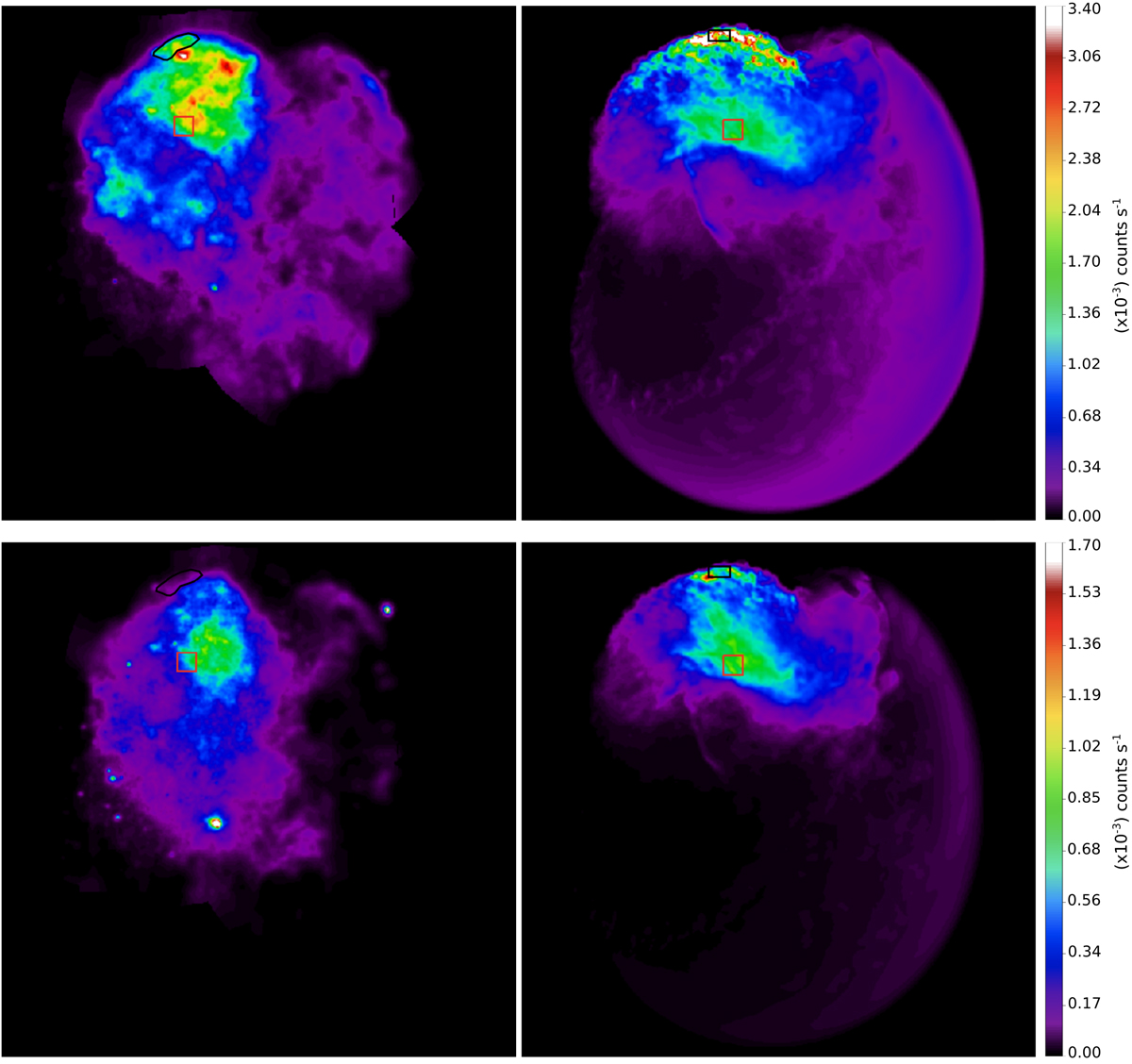

Smoothed X-ray count rate maps in the [0.5−1.4] keV (upper panels) and [1.4−5] keV (lower panels) bands with a pixel size of 11′′. Left panels:2010 observations resampled as explained in the Appendix B. Right panels: synthetic images derived from the model, as explained in Sect. 2.2. The black and red shapes indicate the regions selected for the spectra shown in Fig. 10.
