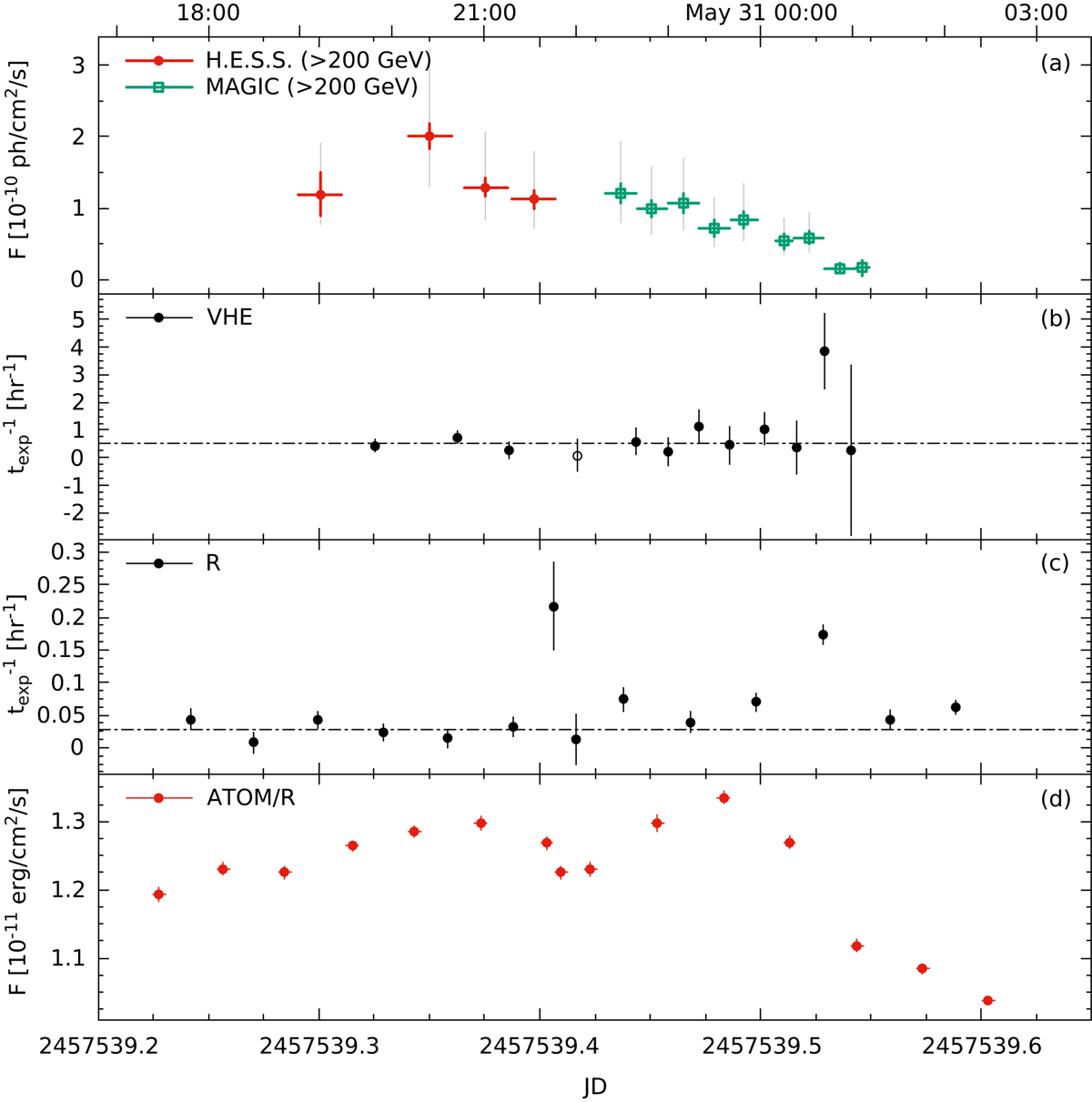

Fig. 10.


Light curves and time scales of PKS 1510–089 of the flare night, JD 2457539. a: VHE γ-ray light curve from H.E.S.S. (red points) and MAGIC (green open squares). The binning is 28 min and 20 min for the H.E.S.S. and MAGIC light curves, respectively. The grey bars mark the systematic uncertainties. b: inverse exponential time scales between subsequent points of the VHE γ-ray light curve. Systematic uncertainties have been considered for the open symbol, as it marks the step from H.E.S.S. data points to MAGIC data points. The grey dash-dotted line marks the harmonic mean with h−1. c: inverse exponential time scales between subsequent points of the R-band light curve. The grey dash-dotted line marks the harmonic mean with h−1. d: optical R-band light curve from ATOM showing individual exposures of 8 min duration each.
