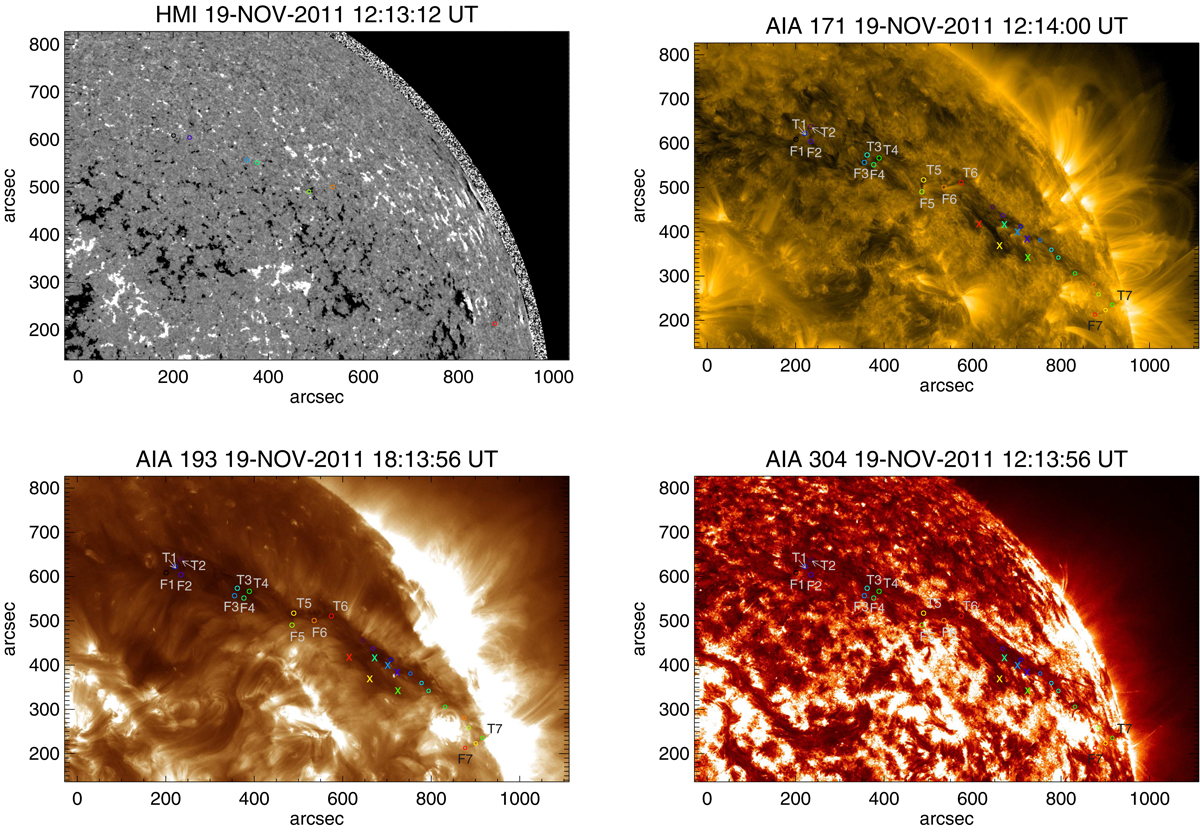

Fig. 10.
HMI magnetogram, AIA 171 Å, 193 Å, and 304 Å images with the same field of view looking at prominence PC on November 19, 2011. Prominence features are marked with circles in different colors for all AIA images. Only footpoints of the prominence are marked in the magnetogram, which is shown in gray saturated at ±40 G. The diameter of these circles is 8 arcsec (about 5800 km). The crosses mark some dark patches and small bright spots in the chromosphere near the prominence to avoid confusion.
