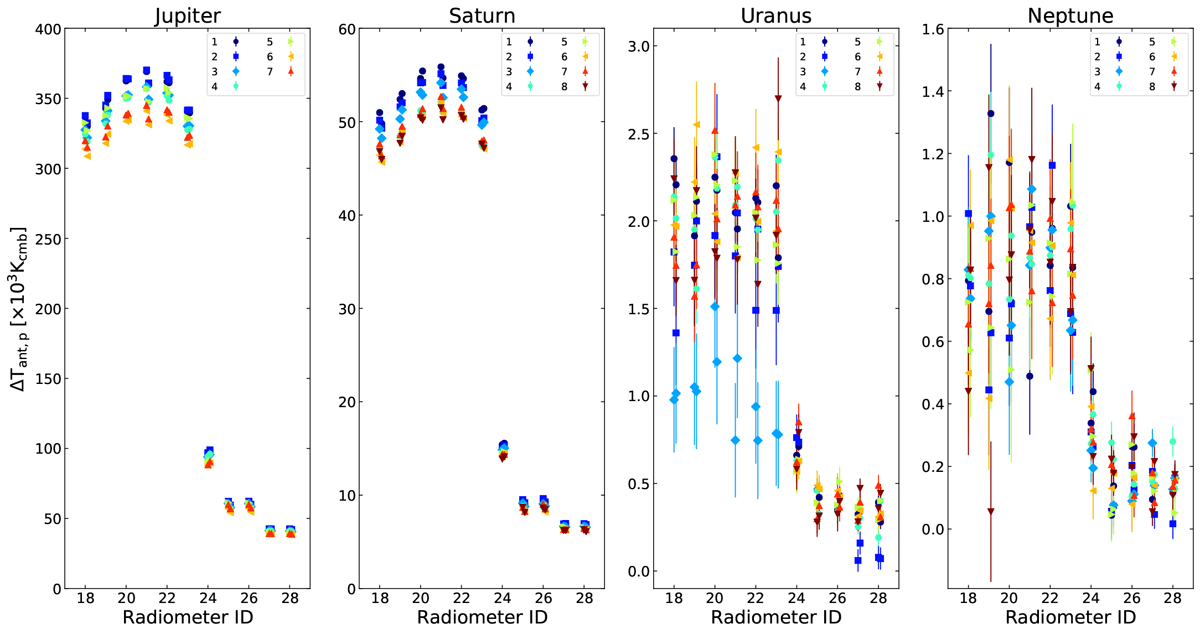

Fig. 6
Values of
for transits of each planet and radiometer. The X-axis is the radiometer index in form hh.p
with hh = 18, 19, 20, 21, 22, 23 for the 70 GHz channel, 24, 25, 26 for the 44 GHz channel, and 27, 28 for the 30 GHZ channels. The
p
index accounts for polarization with 0 for M (Y) polarization and 1 for S (X) polarization. The error bars account for noise. For Jupiter and Saturn, they are smaller than the size of the symbols.
