Plasma flows and sound-speed perturbations in the average supergranule

Free Access

Fig. 8.

Open with DEXTER Download original image

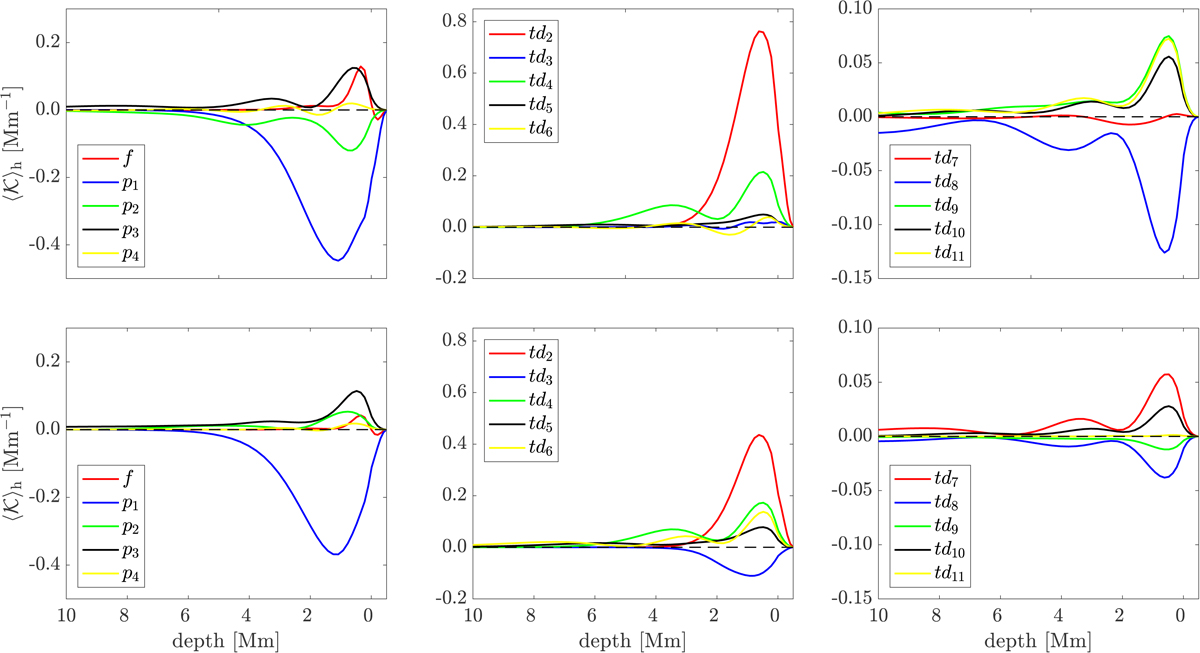

Contributions to the horizontally averaged averaging kernel for the sound-speed perturbations inversions at 0.5 Mm depth. Top row: inversion with the positive δc_s at the supergranule centre. Bottom row: inversion with the negative δc_s at the supergranule centre. Left column: ridge filters. Middle column: phase-speed filters from td₂ to td₆. Right column: phase-speed filters from td₇ to td₁₁.
