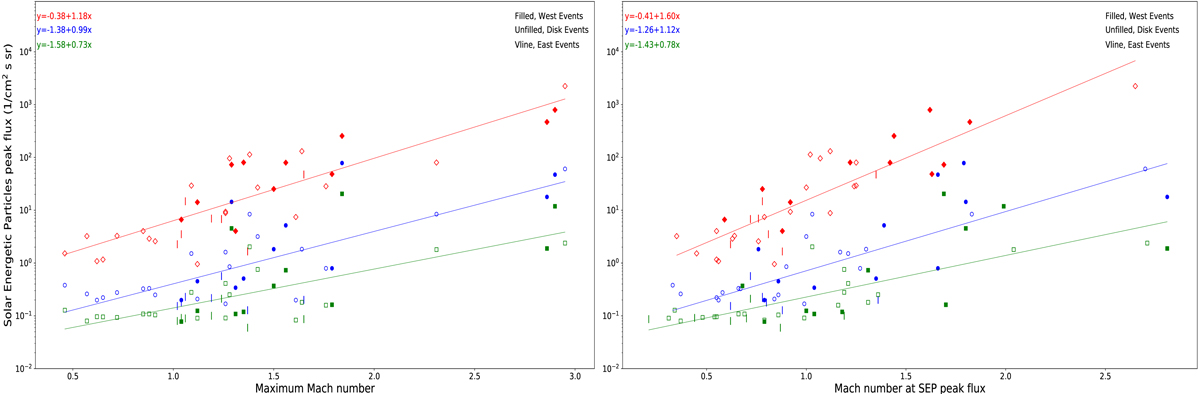

Fig. 11.
Scatter plot of maximum Mach number (left panel) and Mach number at SEP peak flux (right panel) vs SEP peak flux in the > 10 MeV (red), > 50 MeV (blue), and > 100 MeV (green) energy channels. The open symbols represent disk events (longitude −20 < L < 45), the filled symbols west events (longitude > 45), and the vertical lines east events (longitude < −20).
