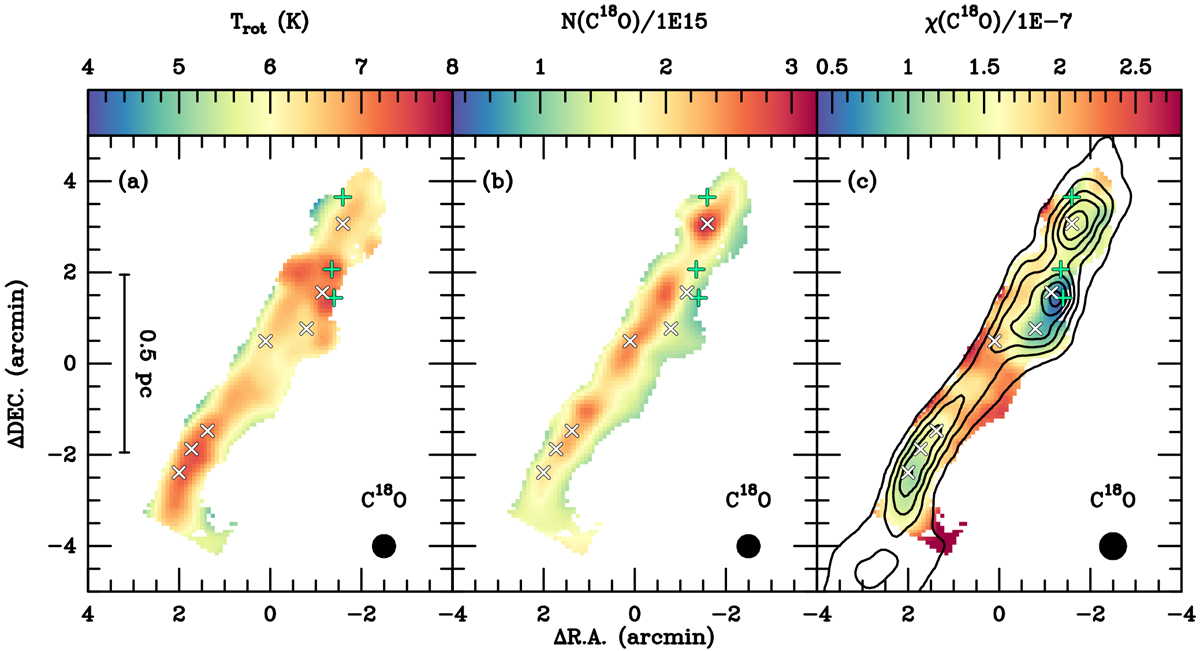

Fig. 11


(a) C18O rotational temperature map. (b) C18O column density map. (c) C18O fractional abundance map overlaid with H2 column density contours. The contours start at 6 × 1021 cm−2, and increase by 3 × 1021 cm−2. The beam size is shown in the lower right corner of each panel. In all panels, the (0, 0) offset corresponds to αJ2000 = 18h28m50.s4, δJ2000 = 00°49′58.′′72, the three green pluses indicate the positions of the three embedded YSOs, and the white crosses mark the positions of the seven dust cores (Enoch et al. 2007).
