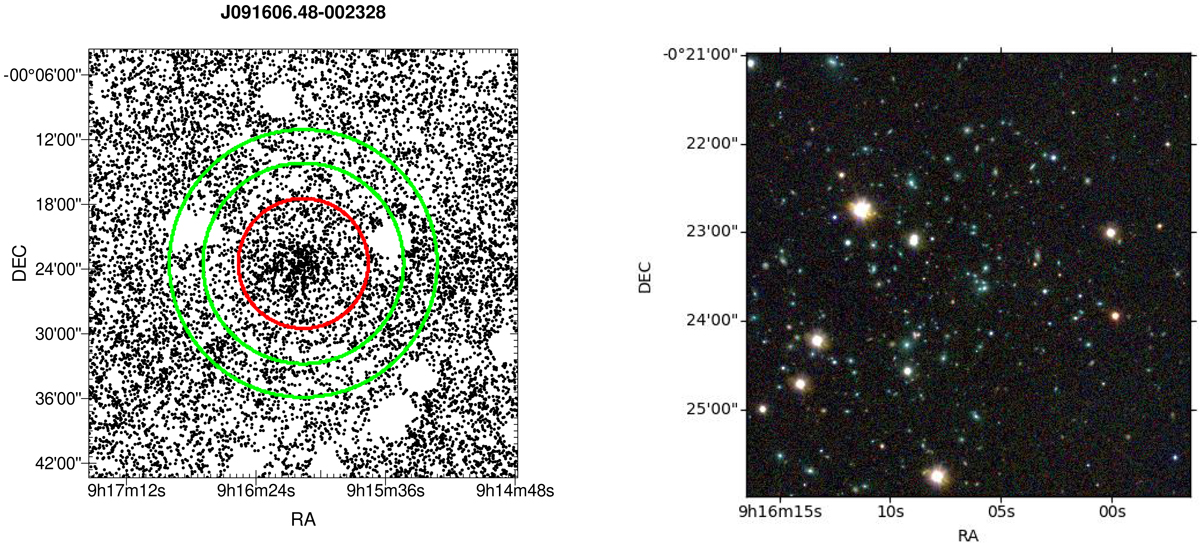

Fig. 2.

AMICO-KiDS detection AK3 J091606.48-002328 or Abell 0776. Left panel: galaxy map of AK3 J091606.48-002328 (RA = 139.027, Dec = −0.3913, S/N = 9.68, z = 0.37, λ⋆ = 137): the region spans an area of ∼50′ × 50′. The black dots represent the galaxies brighter than rlim = 24.0. The red circle encloses the central area within r200 ∼ 6′; and the two green circles delimit the area over which the background is estimated (in this case, an annulus with radii from 12′ to ∼18′). The white holes in the galaxies distribution indicate masked areas. Right panel: colour composite (g, r, i) image relative to AK3 J091606.48-002328. The stamp shows a ∼6′ × 6′ region centred on the location identified by AMICO.
