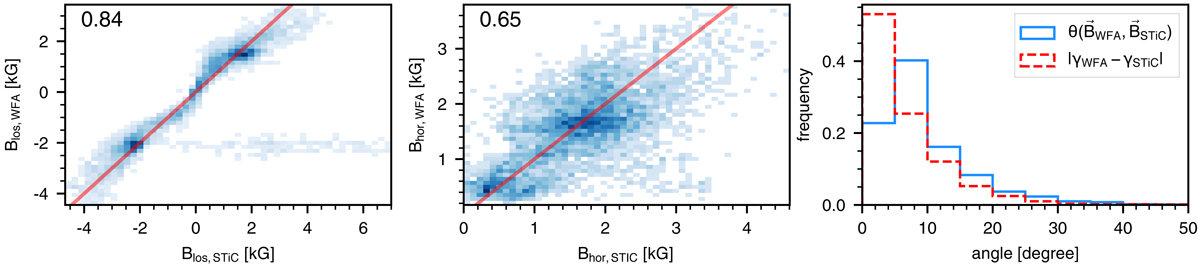

Fig. 6.

2D histograms of non-LTE versus WFA LOS magnetic field strength (left), horizontal field strength (middle) and histograms of angle differences (right) between the 3D field vector as recovered from the WFA and non-LTE STiC inversions (solid blue) and between their field inclinations γWFA and γSTiC (dashed red) for pixels where the total WFA magnetic field strength exceeds 2 kG (white contours in Fig. 5d). Format for the left two panels as in Fig. 3.
