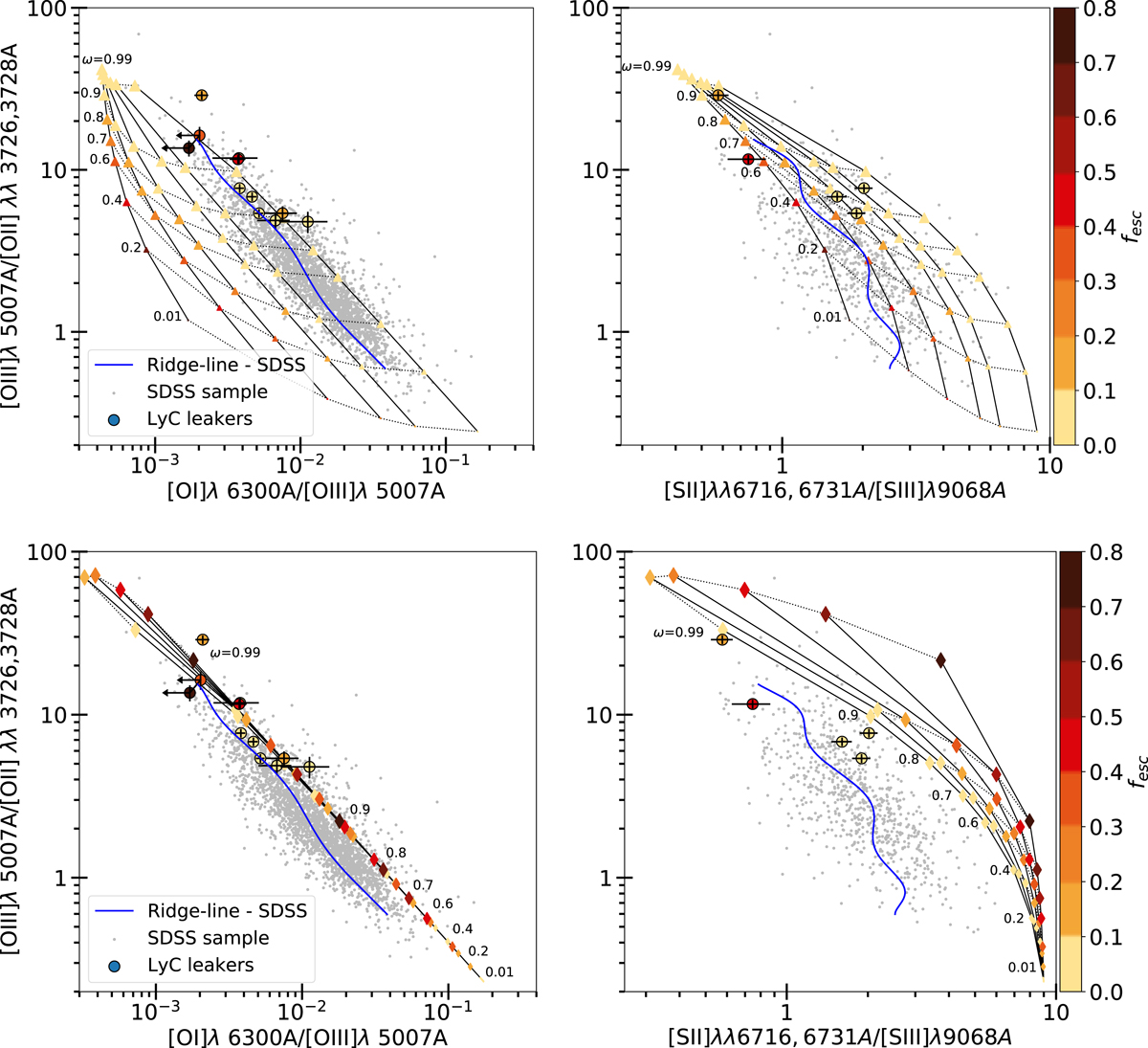

Fig. 9.


O32−O13 and O32−S23 diagrams (same as Fig. 5) showing the predictions from the two-zone photoionization models. Upper and lower panels: DBC and DBG models, respectively.
