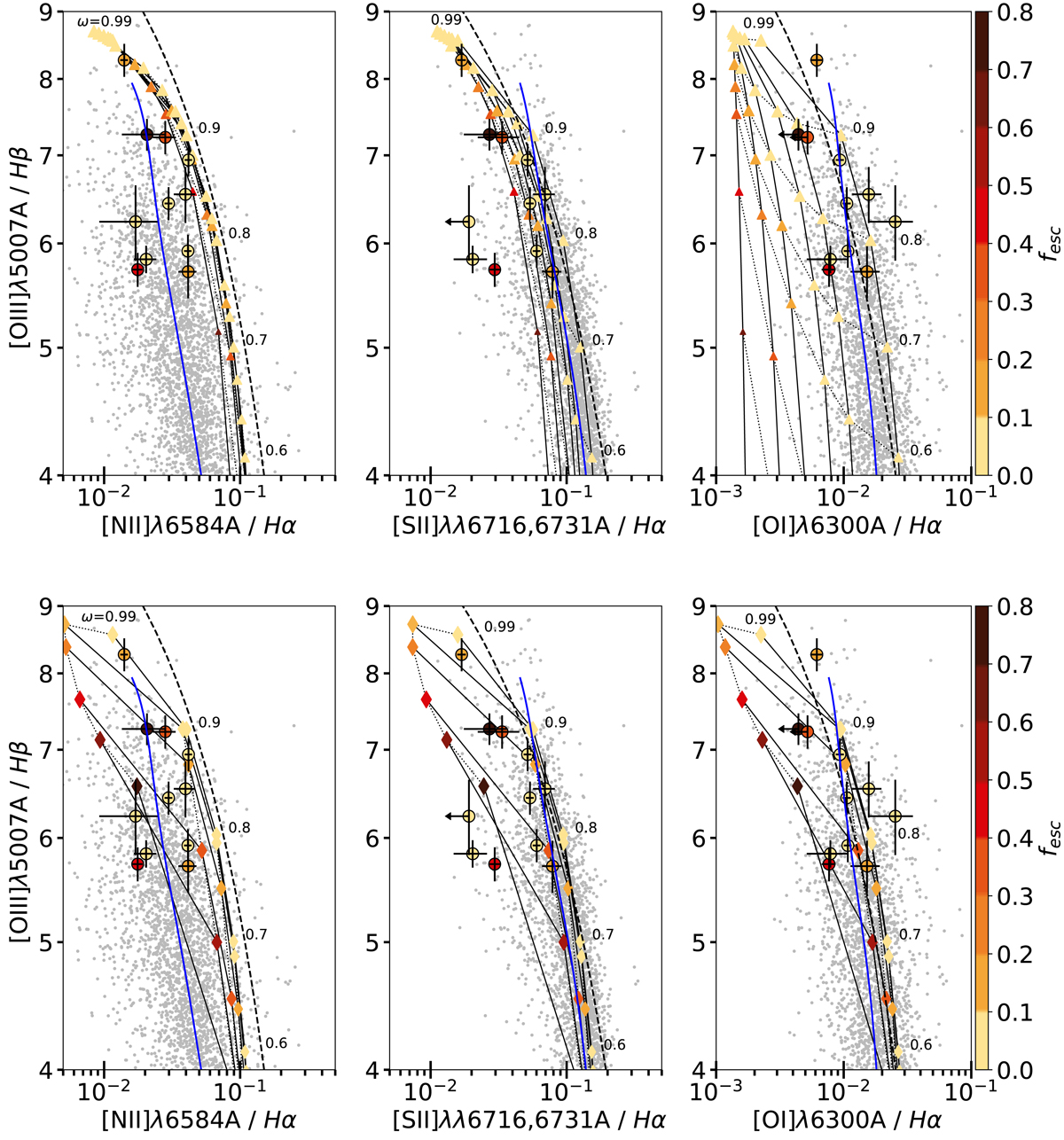

Fig. 8.


Classical diagrams (same as Fig. 4) showing the predictions from the two-zone photoionization models. Upper and lower panels: represent DBC and DBG models, respectively.
