Fig. 9

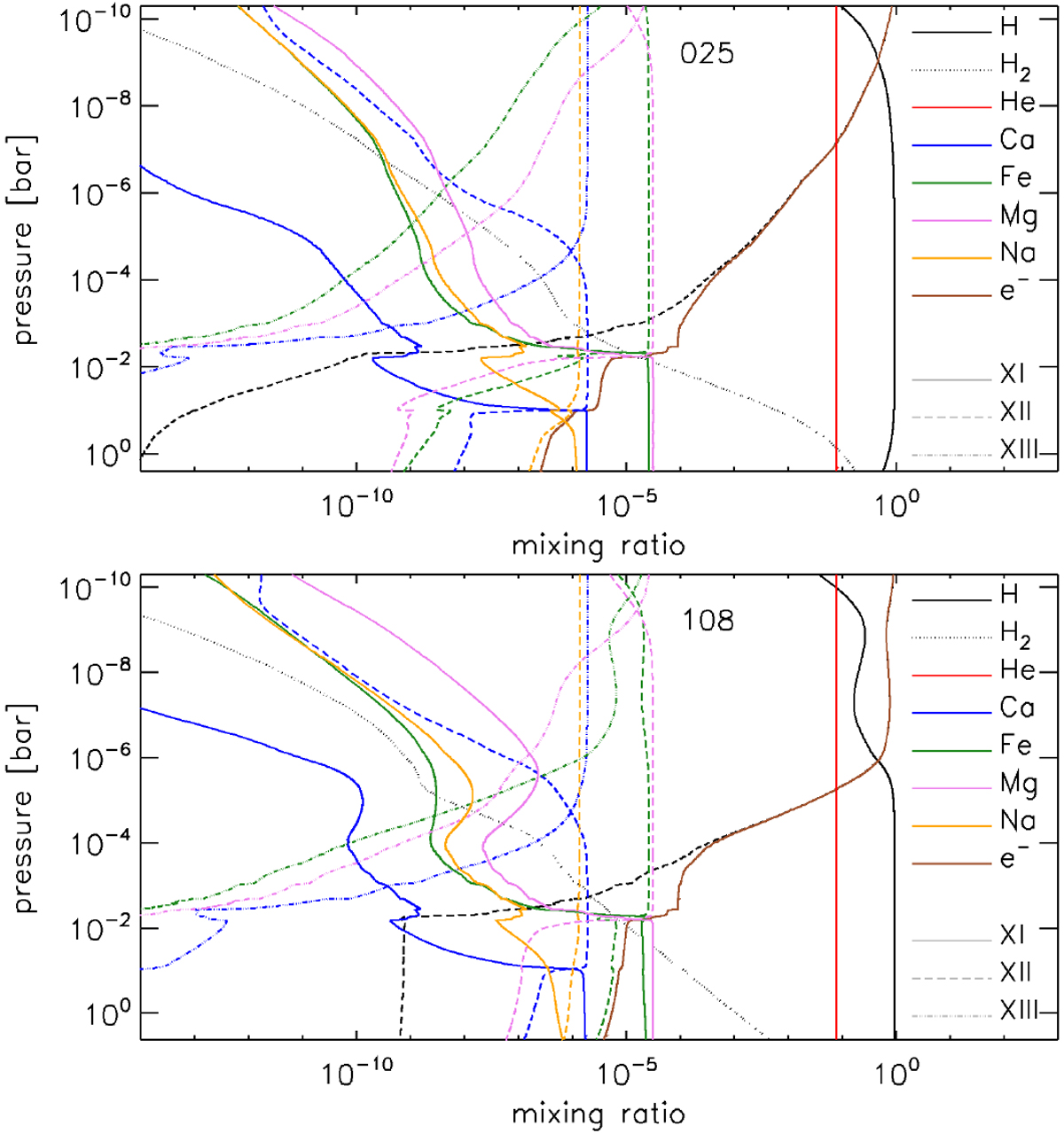

Mixing ratios for hydrogen (black), H2 (black-dotted), He (red), Ca (blue), Fe (green), Mg (violet), Na (orange), and electrons (brown) as a function of atmosphericpressure. Neutral (XI), singly ionised (XII), and doubly ionised (XIII) species are marked by solid, dashed, and dash-dotted lines, respectively. Top panel: TP model number 025. Bottom panel: TP model number 108.
