Transit timing variation signature of planet migration: the case of K2-24

Free Access

Fig. 5

Open with DEXTER Download original image

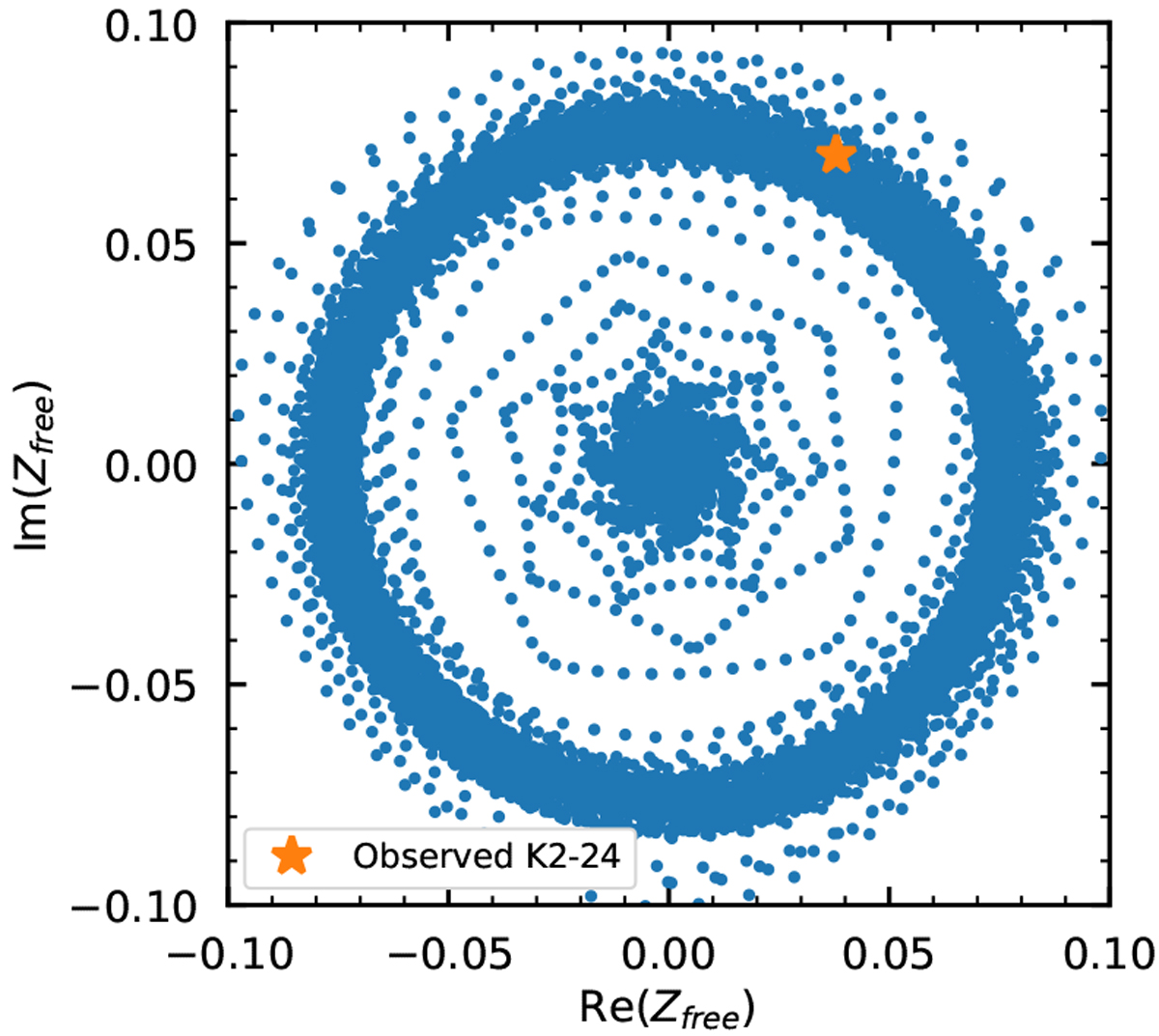

Trajectory of Z_free in real–imaginary plane (see Eq. (5)) for the system shown in Fig. 4. The orange star marks the current observed location of K2-24 in that plane (see Eq. (6)).
