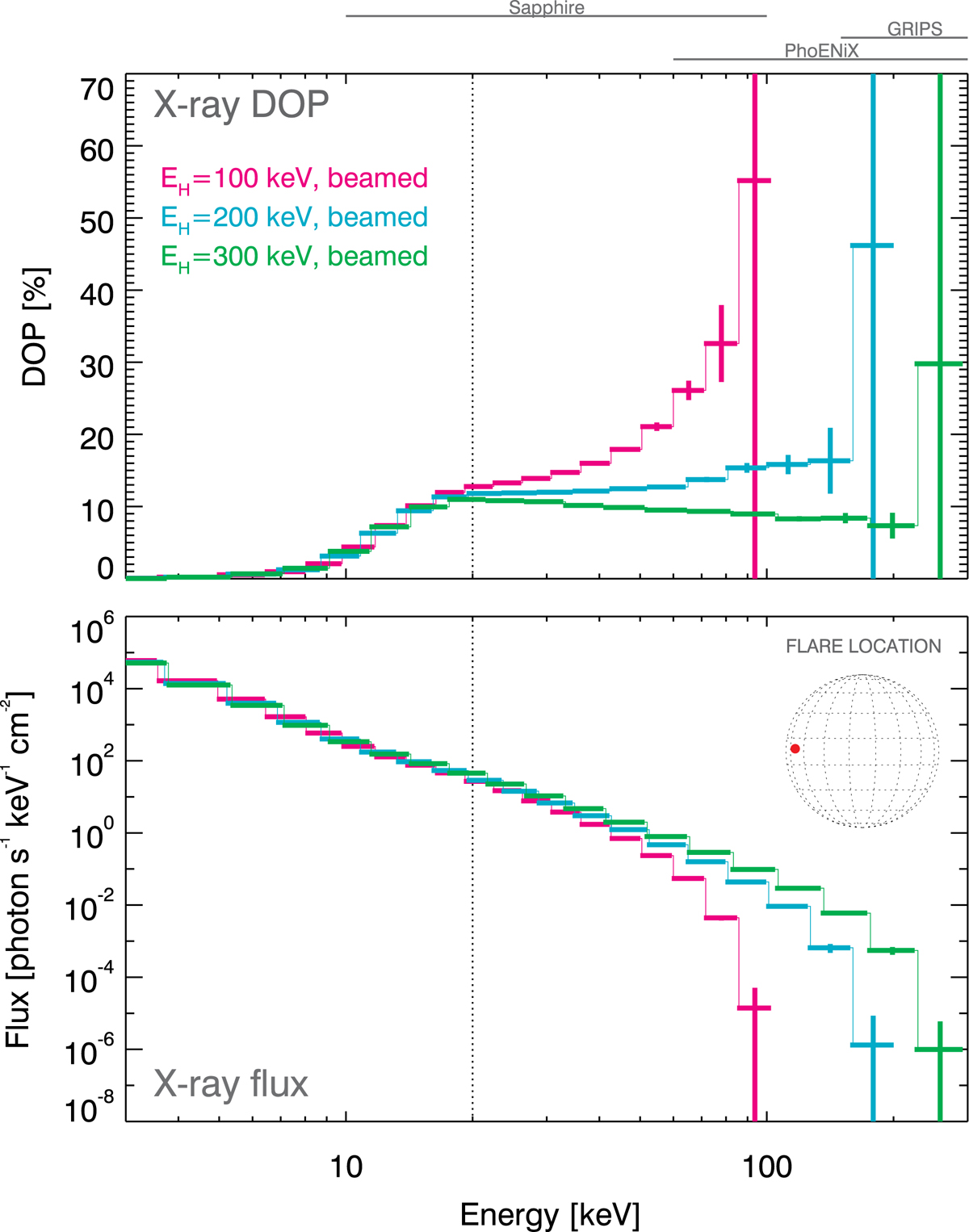

Fig. 3.

Resulting spatially integrated X-ray DOP and flux spectra for injected electron distributions with different high energy cutoffs of EH = 100 keV, EH = 200 keV and EH = 300 keV. Each use the following identical electron and plasma properties of: δ = 5, Ec = 20 keV (vertical grey dotted line), a beamed distribution and e s−1, and coronal plasma properties of: n = 3 × 1010 cm−3 and T = 20 MK, plotted for a flare located at a heliocentric angle of 60°. All DOP spectra include an albedo component and a coronal thermal component (EM = 0.9 × 1048 cm−3). Higher EH produces a clear flattening in the DOP spectra after the low energy cutoff. No turbulent scattering is present.
