Fig. 18.

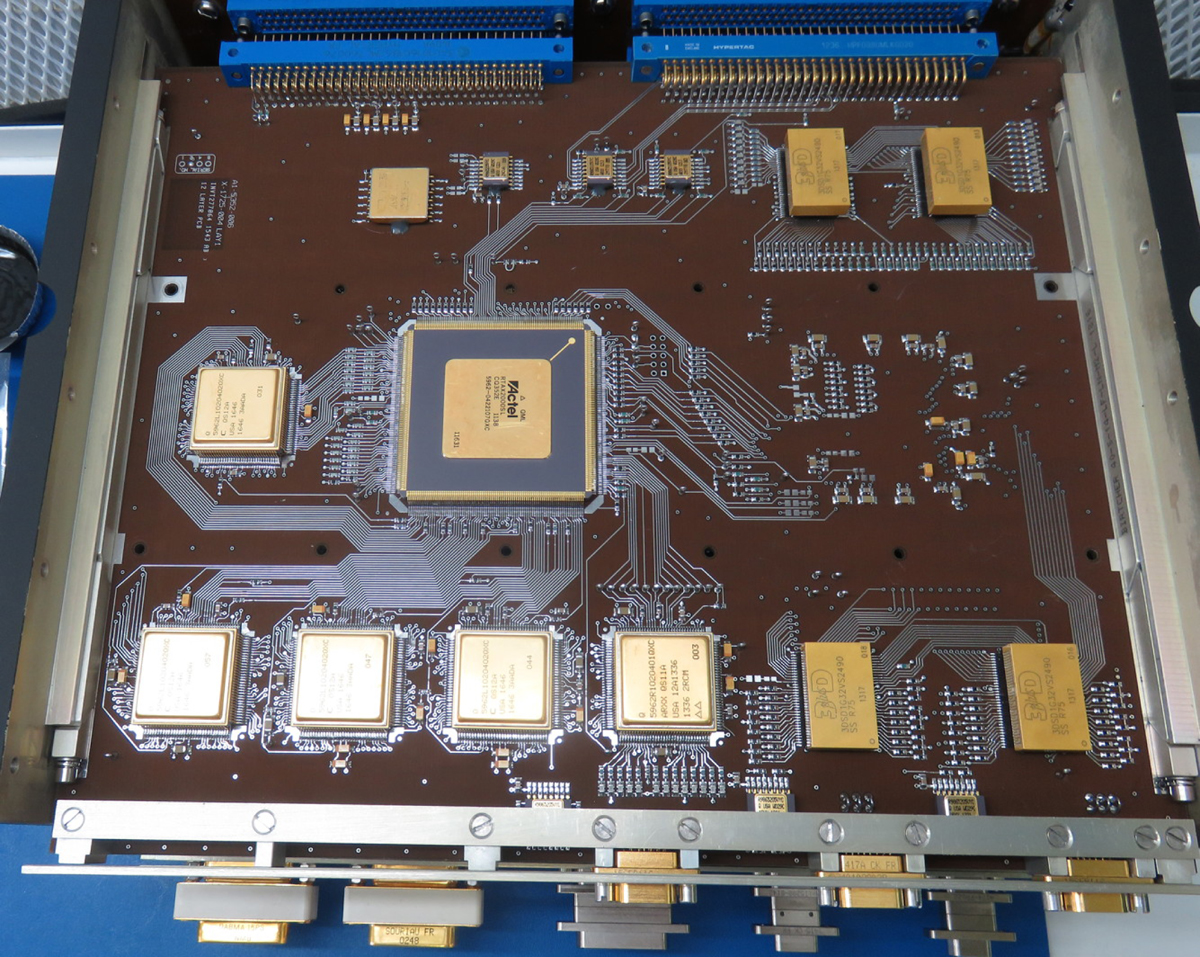

EUI CEB Compression Board. The Compression Board FPGA is the large integrated circuit near the centre. The block on the middle left together with the first three of the bottom row are the compression SRAM. The WICOM is the fourth block of the bottom row. On the top right and bottom right there are four SDRAMs for the WICOM.
