Fig. 16.

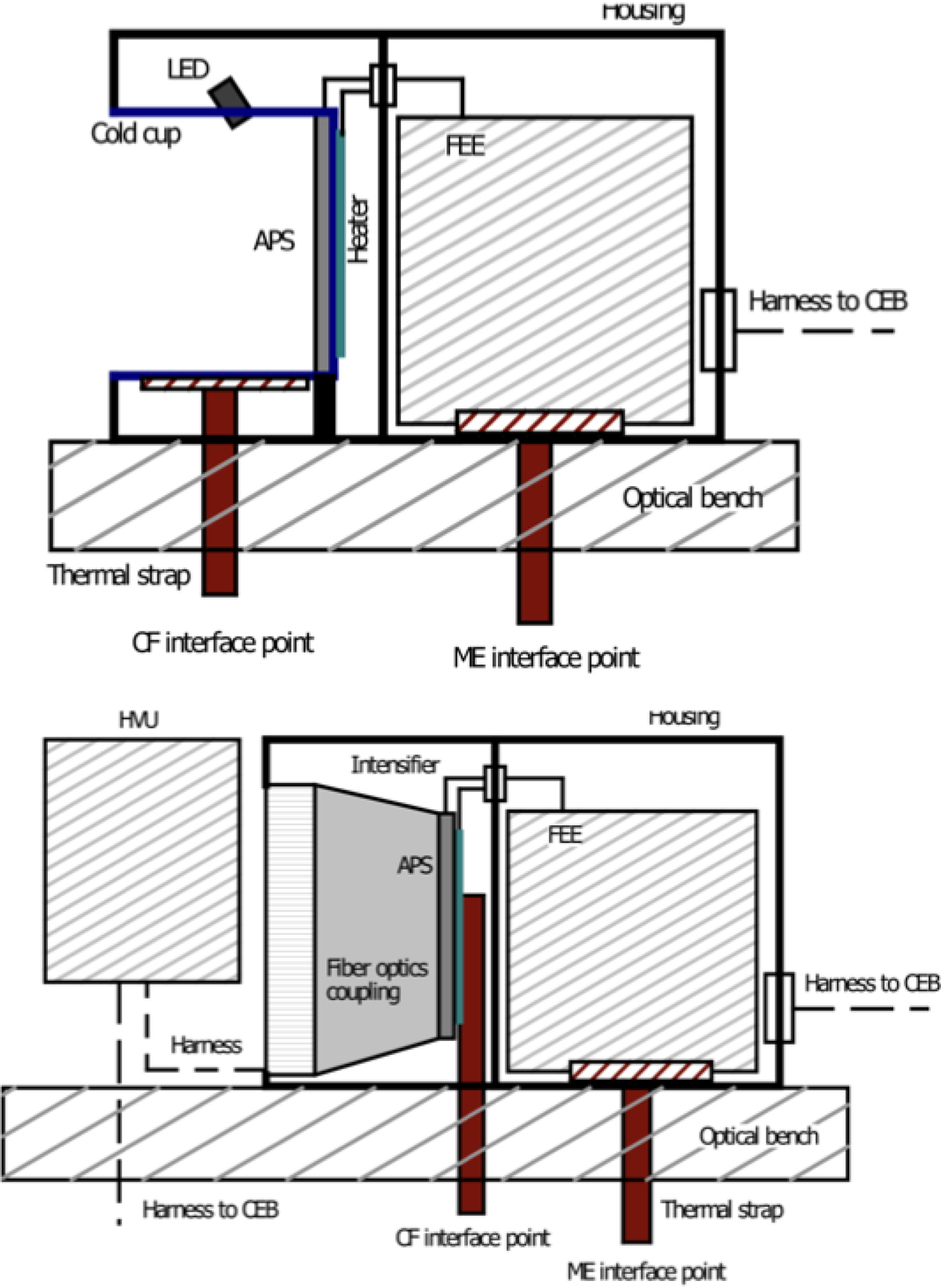

Camera layout for FSI and HRIEUV cameras (top) and for HRILya camera (bottom). Photons enter the camera from the left and reach the CMOS APS from where the signal is read-out to the FEE and ultimately to the CEB (right). The HRILya camera (bottom) has an additional HVU and intensifier. In brown, the Cold Finger (CF) thermal strap and ME thermal strap are shown.
