Fig. 15.

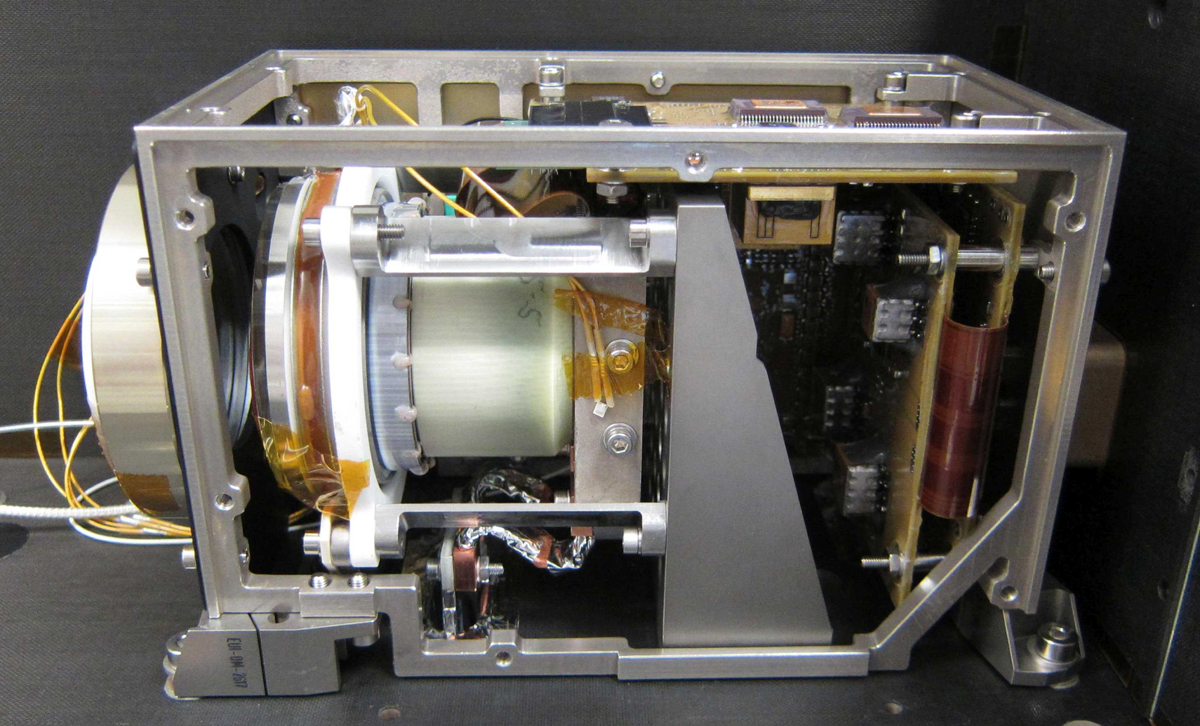

HRILya camera with the APS sensor mounted in the middle, the Front End Electronics (FEE) on the right hand side, and the intensifier on the left hand side. See also Fig. 16 for a schematic layout.
