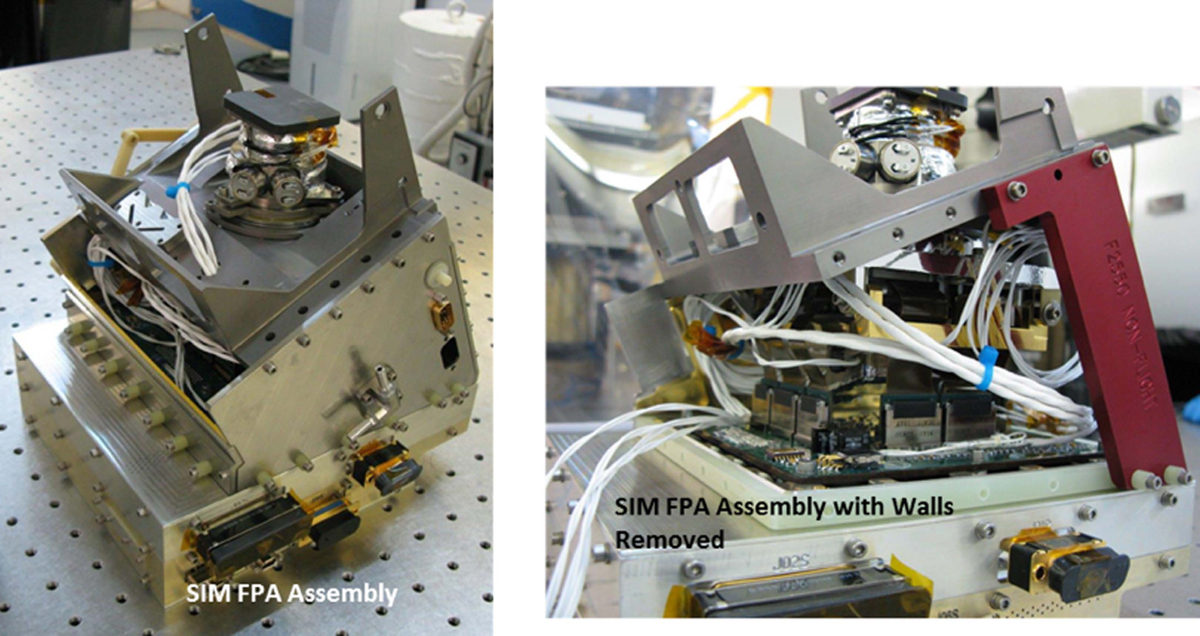

Fig. 14.

SIM focal-plane assembly. Left: final flight configuration, with the lens assembly at the top and the camera electronics enclosure at the bottom. Right: assembly with the walls removed and a non-flight red bracket to temporarily hold the clamshell mount in the proper position.
