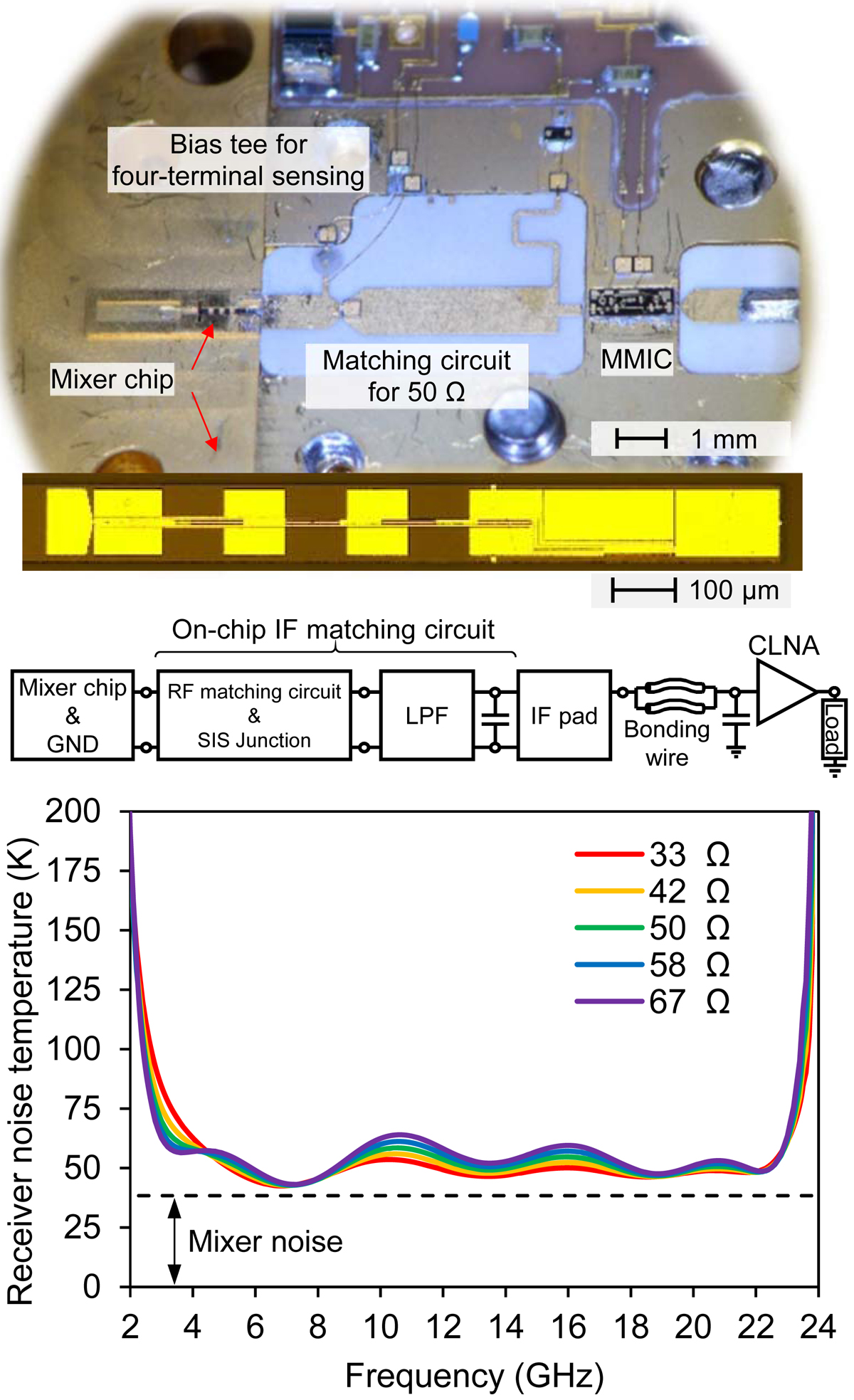

Fig. A.1.


Top: photograph of the mixer chip and inside of the SIS-mixer-preamplifier module. Bottom: schematic of the equivalent circuit used in this calculation and calculated receiver noise temperature for different IF resistance values of the SIS junctions.
