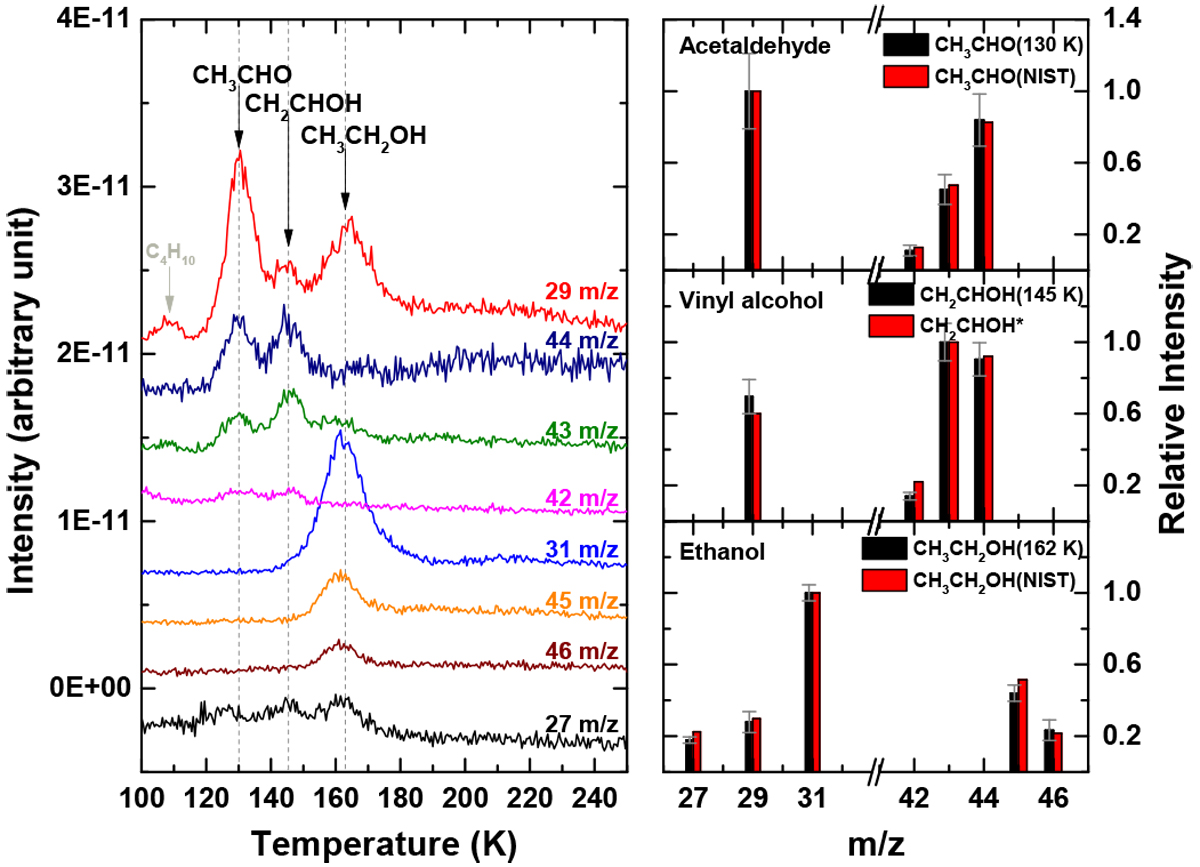

Fig. 3


Left: TPD mass spectra obtained after 60 min of codeposition of C2H2 + O2 + H (exp. 3) at 10 K. The applied deposition ratio of C2H2:O2:H was 1:10:40, and the used H-atom flux was 1.2 × 1013 atoms cm−2 s−1. Only relevant m/z channels are shown and shifted for clarity. The arrows and dashed lines indicate the peak position of the corresponding COMs. Right: comparison of the ionization fragmentation pattern of the detected COMs (black) with available values in the literature (red; NIST database: acetaldehyde and ethanol; Tureček & Hanuš 1984: vinyl alcohol).
