Fig. 7.

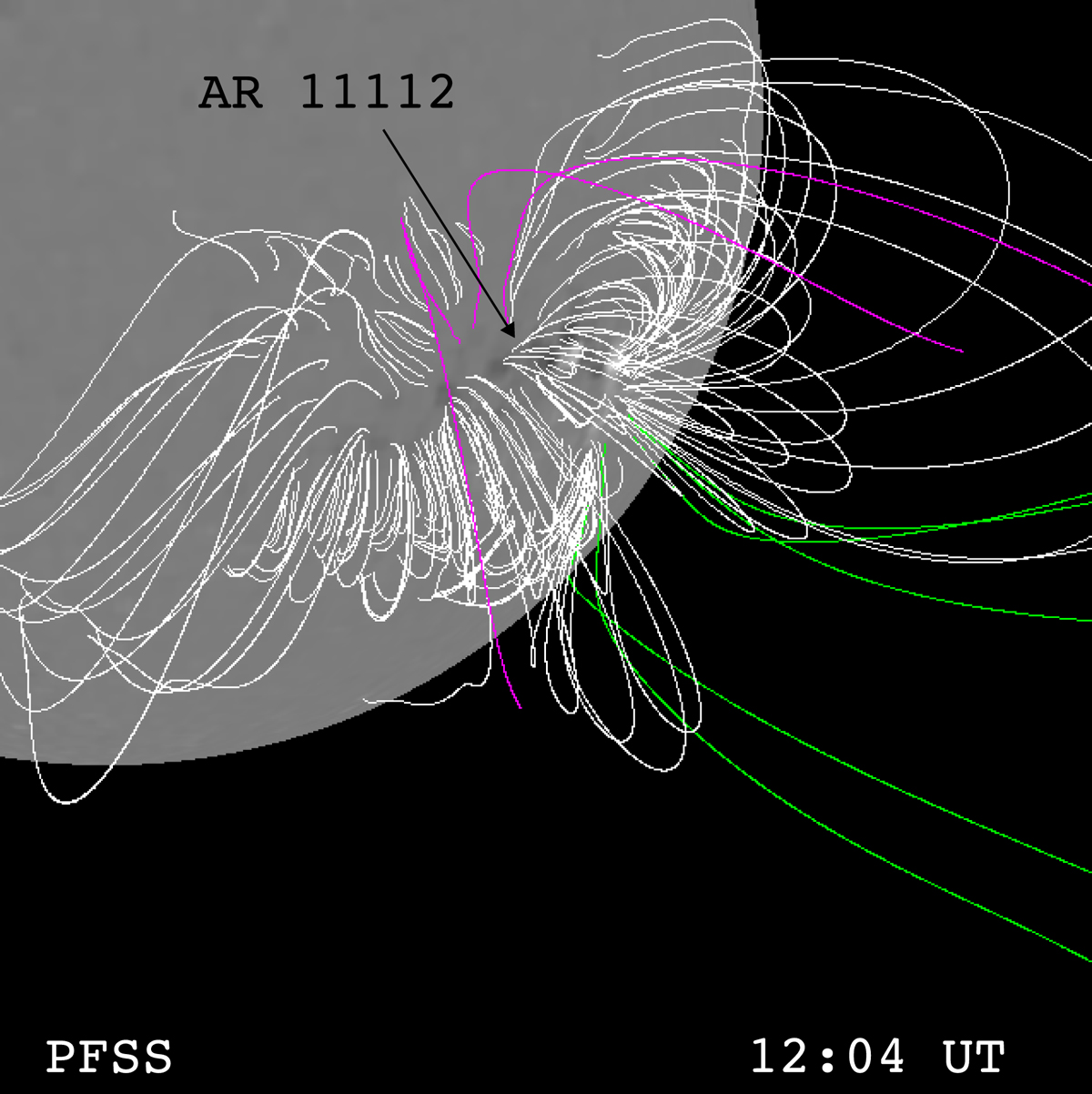

Three-dimensional magnetic field lines around AR 11112 at 12:04 UT obtained by PFSS modeling. Open and closed field lines are coded with green/magenta and white lines, respectively. The grayscale image denotes the LOS component of the magnetic field at the photosphere.
