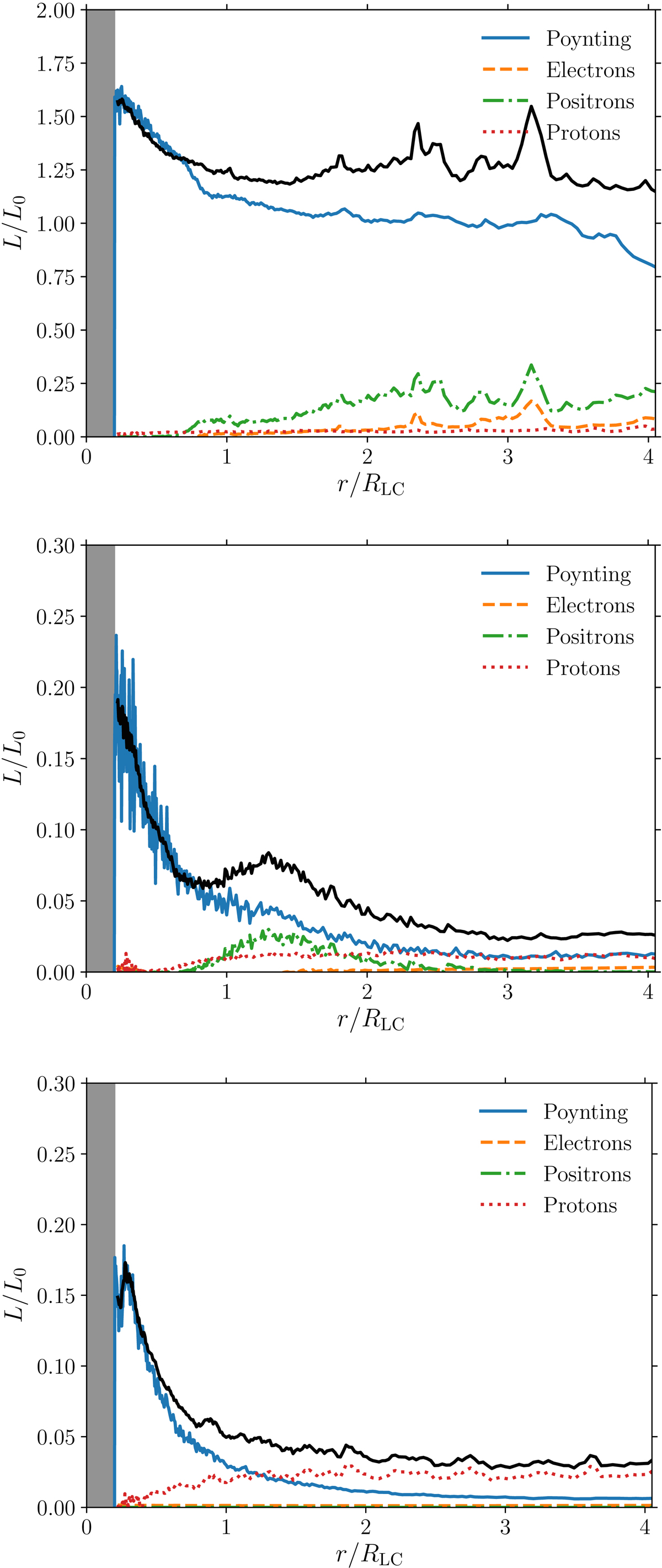

Fig. 11.


Energy dissipation as a function of radius for fpp = 0.01, fpp = 0.05, and fpp = 0.1 (top to bottom). We show the radial Poynting flux integrated over a sphere of radius r (blue line), the luminosity in electrons (orange dashed line), in positrons (green dot-dashed line), and in protons (red dotted line), and the sum of all these components (black line), normalised by L0. We caution that the vertical scales of the figures are different.
