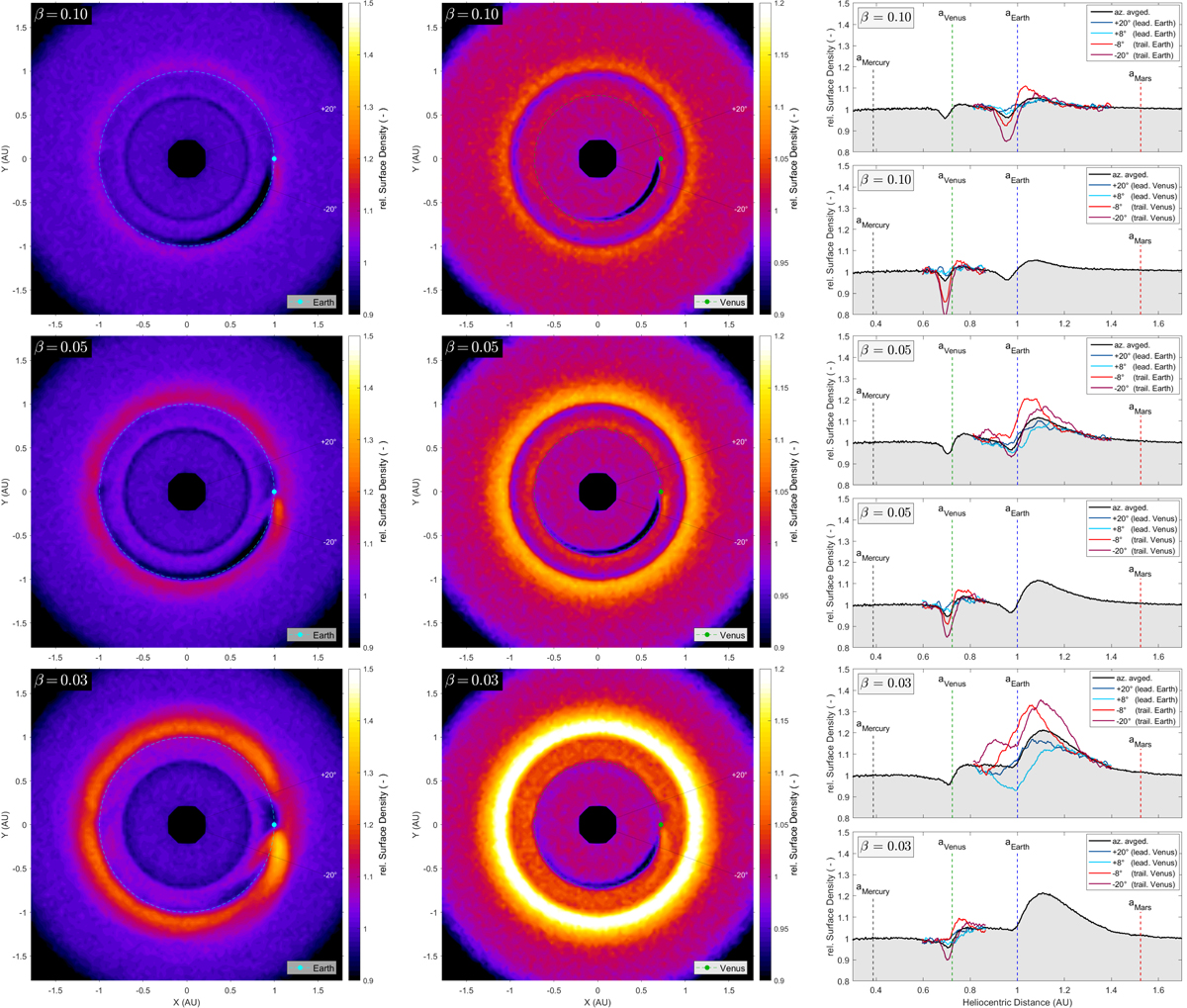

Density distribution under the presence of all planets for β = 0.1, 0.05, 0.03 (D = 5 μm, 10 μm, 17 μm) from top to bottom, recorded in a frame co-rotating with Earth (left) and Venus (middle). 2D-histogram bin size is 0.02 au × 0.02 au. Right: radial profiles of the obtained surface density for the Earth and Venus ring. Radial profiles are given at cuts leading and trailing Earth and Venus, as well as for the azimuthal average. Vertical dashed lines indicate the location of the semi-major axes of the planets.
