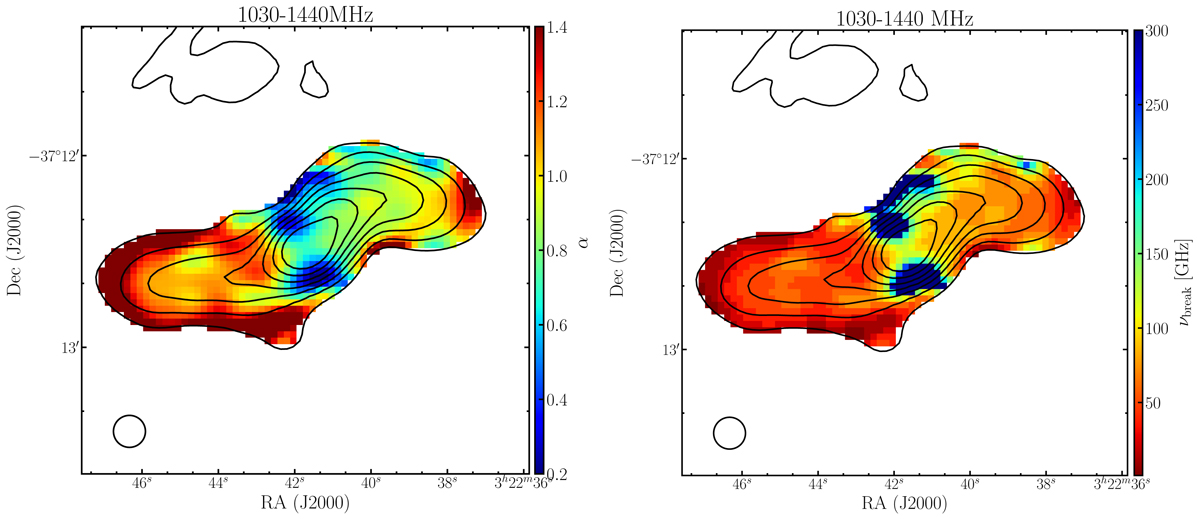

Fig. 13.
Left panel: spectral index map between 1.03 and 1.44 GHz of the central emission of Fornax A. The resolution (10″ × 10″) is shown in the bottom left corner. The black contours show the 1.03 GHz flux density, starting at 0.6 mJy beam−1 and increasing by a factor of two. Right panel: break-frequency map of the central emission of Fornax A. The PSF of the map (10″ × 10″) is shown in the bottom left corner. Contour levels are the same as in the left panel.
