Fig. C.4

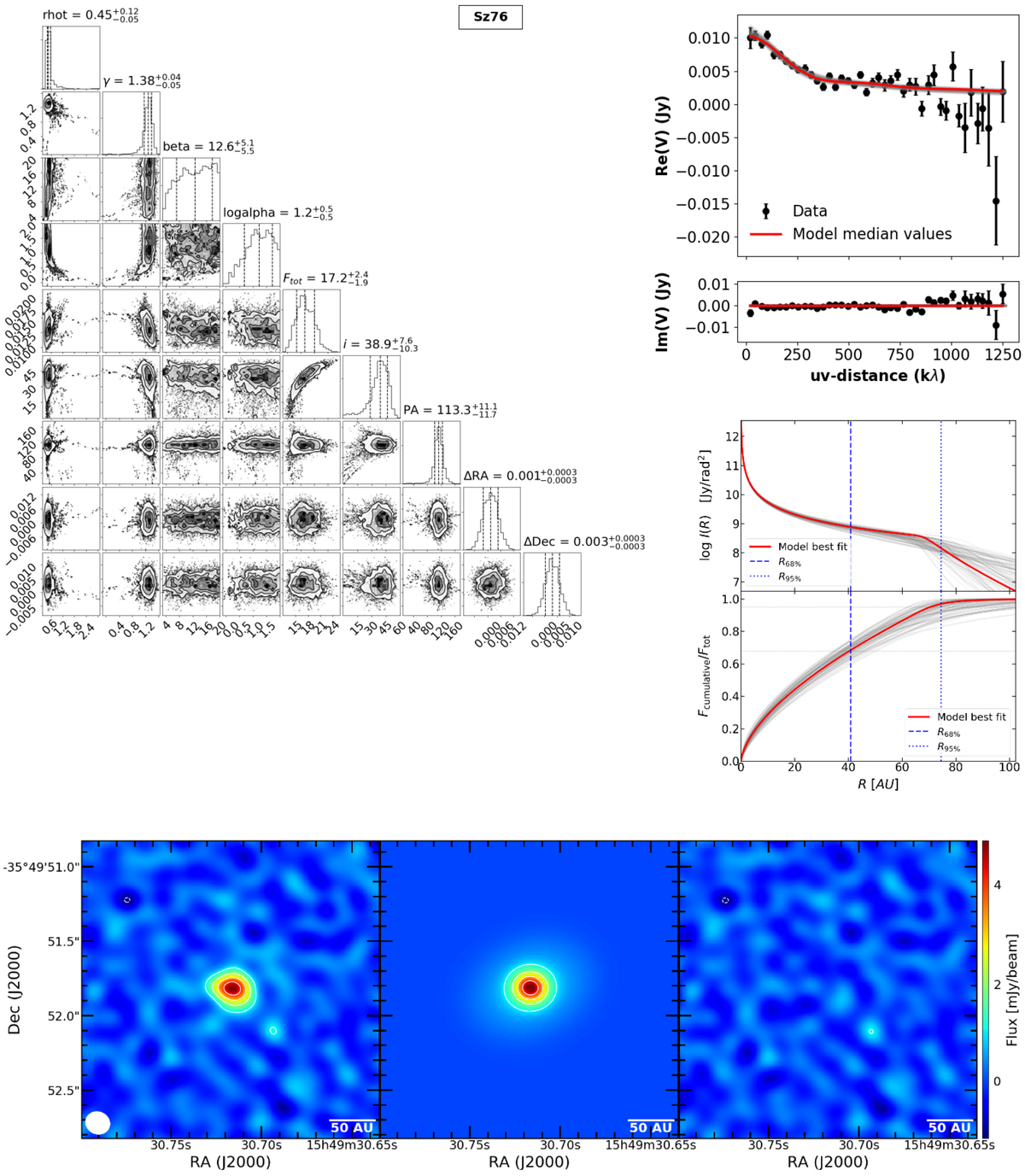

Modeling results of the Sz 76 disk from ALMA observations. A Nuker profile is fitted to the continuum emission distribution of the disk in the uv-plane. The panels show: the real and imaginary part of the observed and modeled visibilities, the 1D and 2D histograms of the Nuker model free parameters, the brightness emission and cumulative distributions, the R68% and R95% radii, and the fit results in the image plane.
