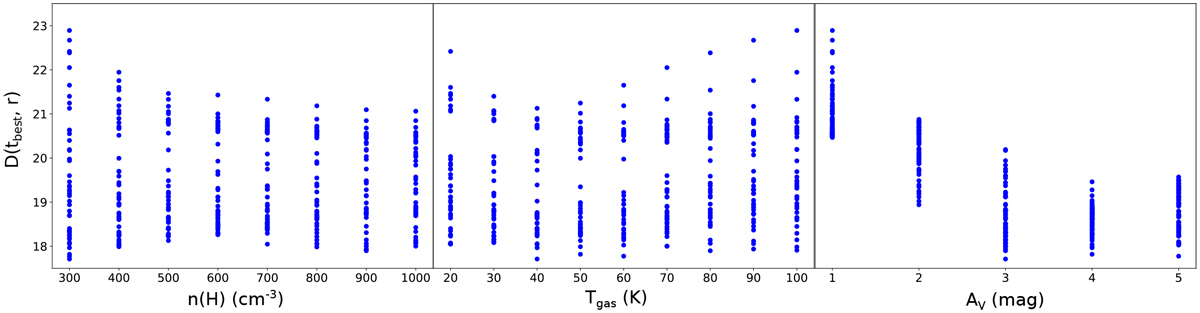

Fig. 4


Results of the grid of models applying typical conditions for diffuse or translucent clouds in order to reproduce the observations towards the cloud at vLSR =−17 km s−1. The deviation between observations and model at the time of best agreement tbest is given by D(tbest, r), which is plotted versus density, temperature, and visual extinction. The best-fit model is given at a time tbest = 6.2 × 106 yr and has the following parameters: (n(H), AV, Tgas) = (300 cm−3, 3 mag, 40 K).
